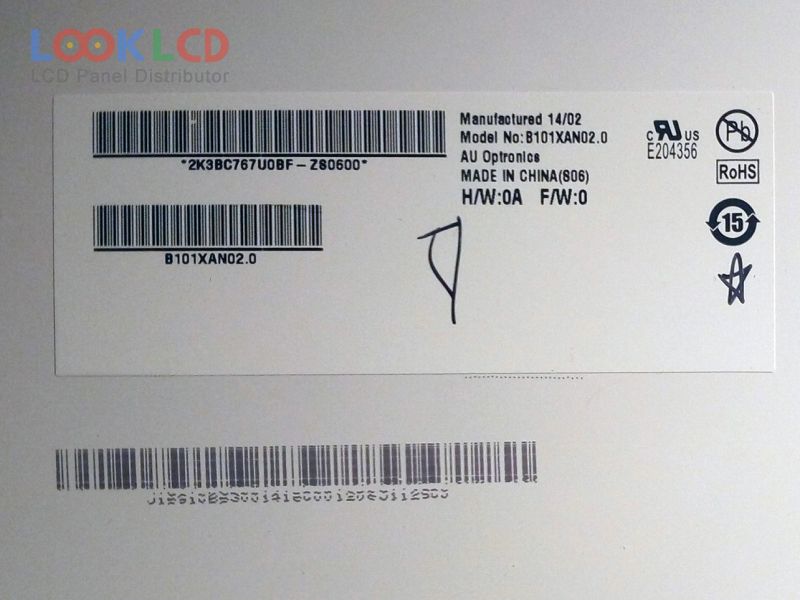

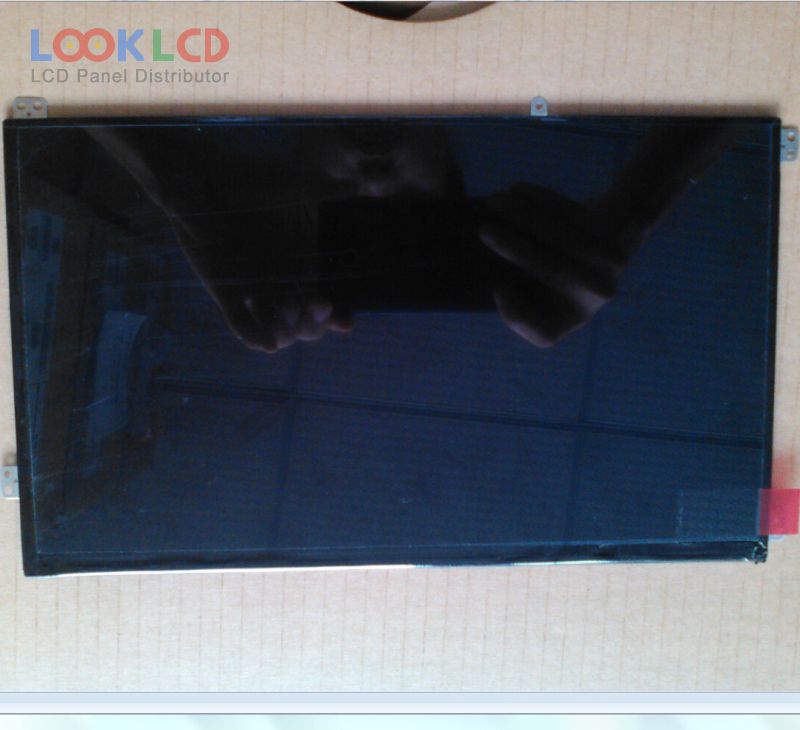

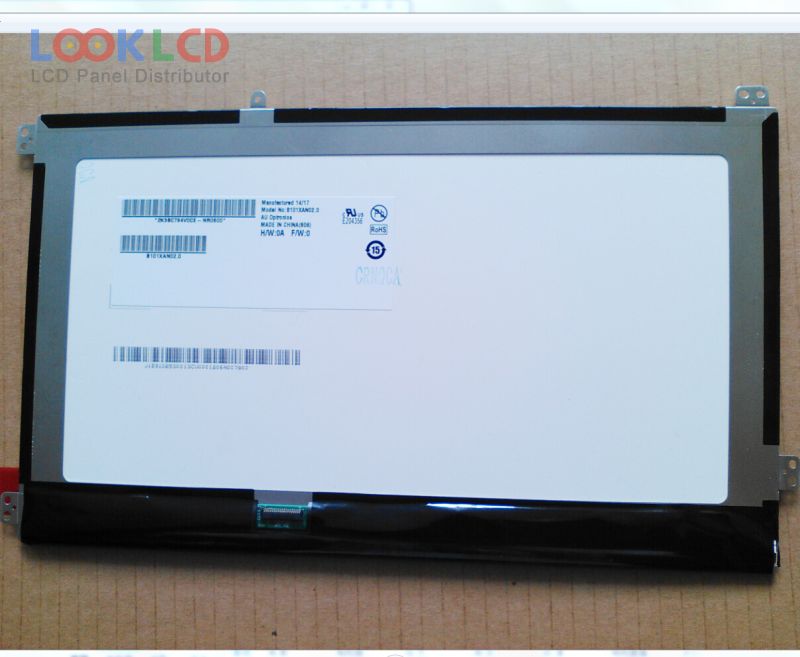

| PartZenbakia | B101XAN02.0 |
| Marka | AUO |
| Tamaina | 10.1 |
| Aplikazio | PAD |
| Ebazpena | 1366×768 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | AUO |
| panel eredua | B101XAN02.0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1366(RGB)×768 , WXGA |
| bistaratzeko modua | AHVA, Normally Black, Transmissive |
| eremu aktiboa | 222.341×125.568 mm |
| eskema | 235.01×138.95×4.7 mm |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193150% |
| erantzun denbora | 15/10 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 stringsWLEDWithout Driver |
| seinale interfazea | MIPI (4 data lanes), 39 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
