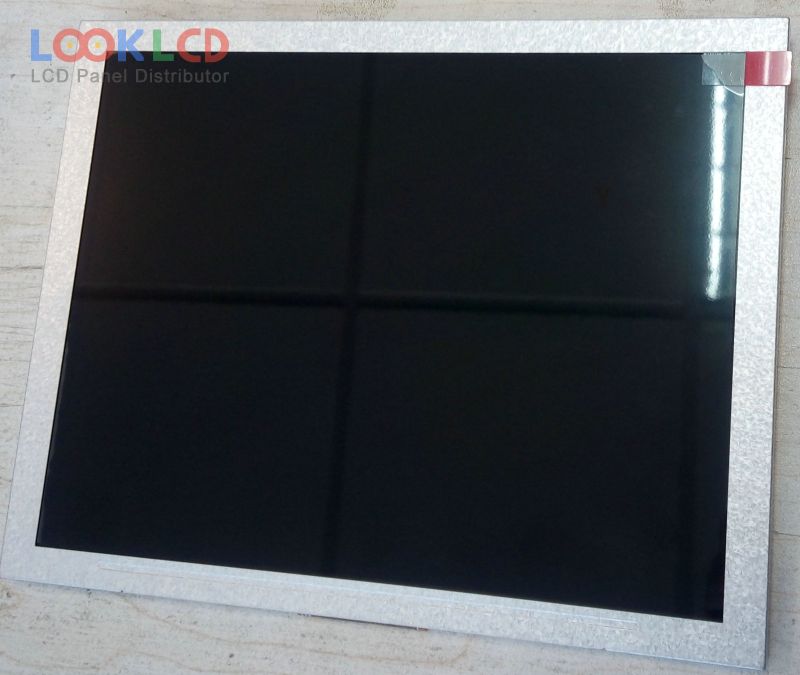

| PartZenbakia | TM080SDH01 |
| Marka | Tianma |
| Tamaina | 8.0 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 500:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AVIC |
| panel eredua | TM080SDH01 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.0 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 162×121.5 mm |
| eskema | 183×141×5.9 mm |
| azalera | Antiglare |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S9PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| sarrerako tentsioa | 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | IA |
