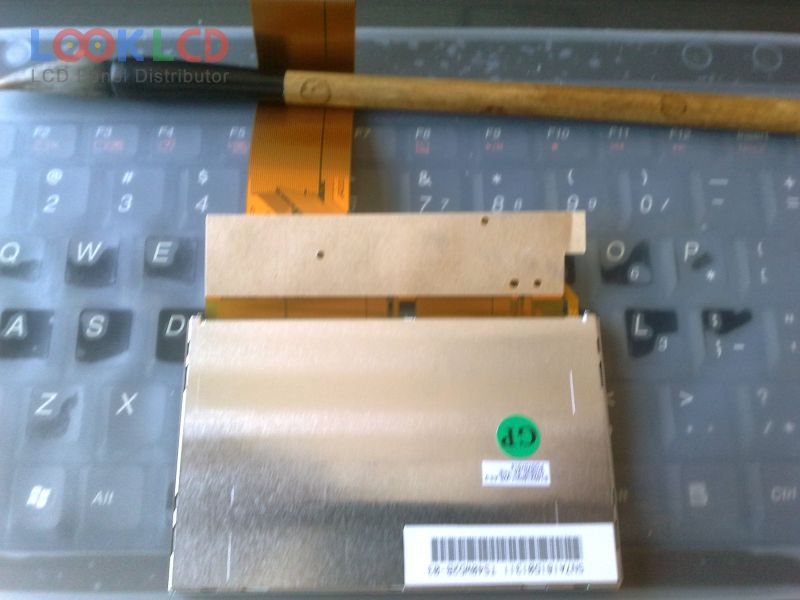

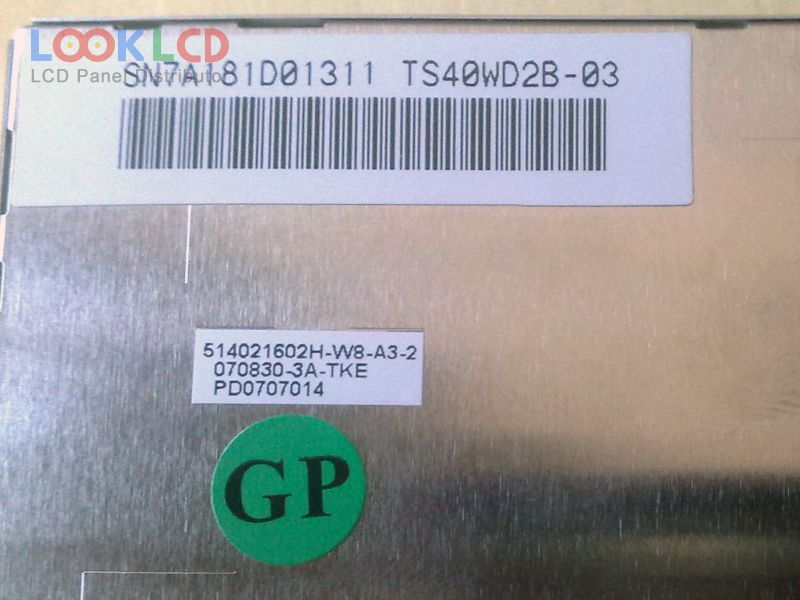

| PartZenbakia | TS40WD2B-03 |
| Marka | Other |
| Tamaina | 4.0 |
| Aplikazio | PND |
| Ebazpena | 480×272 |
| Konposizioa | LCM |
| Distira | 320 |
| CR | 350:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | TopSun |
| panel eredua | TS40WD2B-03 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.0 inch |
| ebazpena | 480(RGB)×272 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 87.84×49.776 mm |
| eskema | 98.3×62.6 mm |
| azalera | |
| distira | 320 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193154% |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 8S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 50 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PND |
