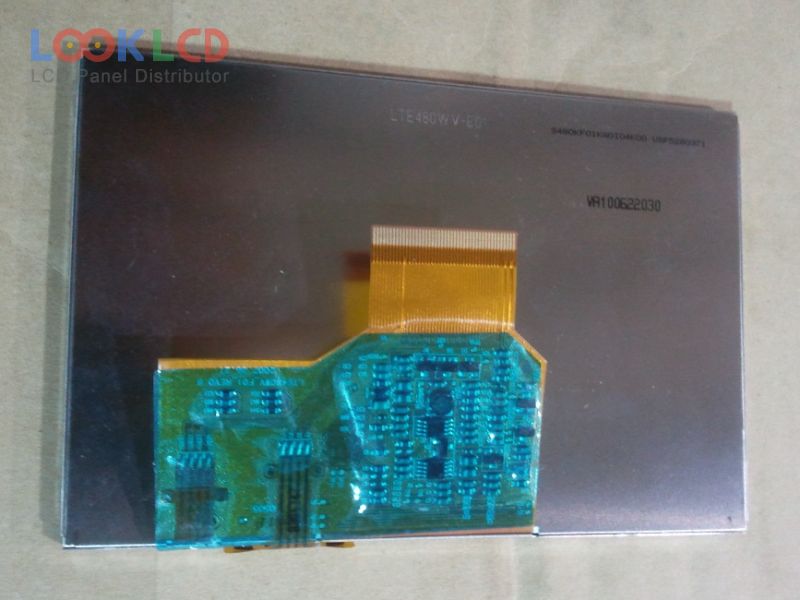

| PartZenbakia | LTE480WV-F01 |
| Marka | Samsung |
| Tamaina | 4.8 |
| Aplikazio | PND |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 280 |
| CR | 300:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SAMSUNG |
| panel eredua | LTE480WV-F01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.8 inch |
| ebazpena | 800×480(RGB) , WVGA |
| bistaratzeko modua | TN, Normally White, TMR |
| eremu aktiboa | 103.8×62.28 mm |
| eskema | 118.2×74.28 mm |
| azalera | |
| distira | 280 cd/m² (Typ.) |
| kontraste-erlazioa | 300 : 1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 22.5 (Typ.)(Tr+Td) |
| ikuspegi angelua | 65/65/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S2PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 45 pins |
| sarrerako tentsioa | 3.3V (Typ.)(VCC) |
| aplikazio | PND |
| 43WQW3H | SII | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| TM047NDH01 | Tianma | 4.7 | 480×272 |
