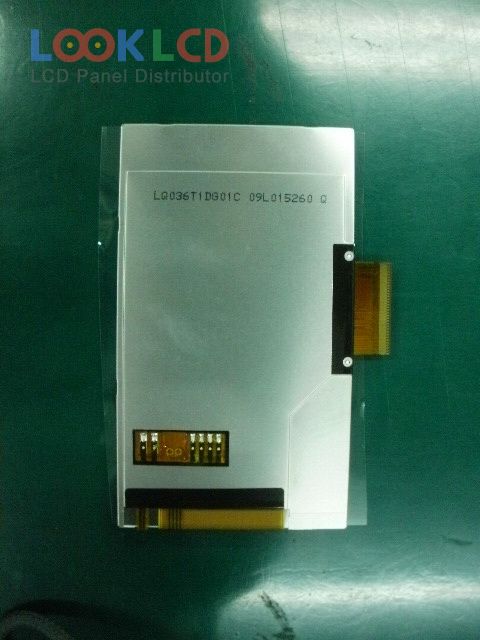

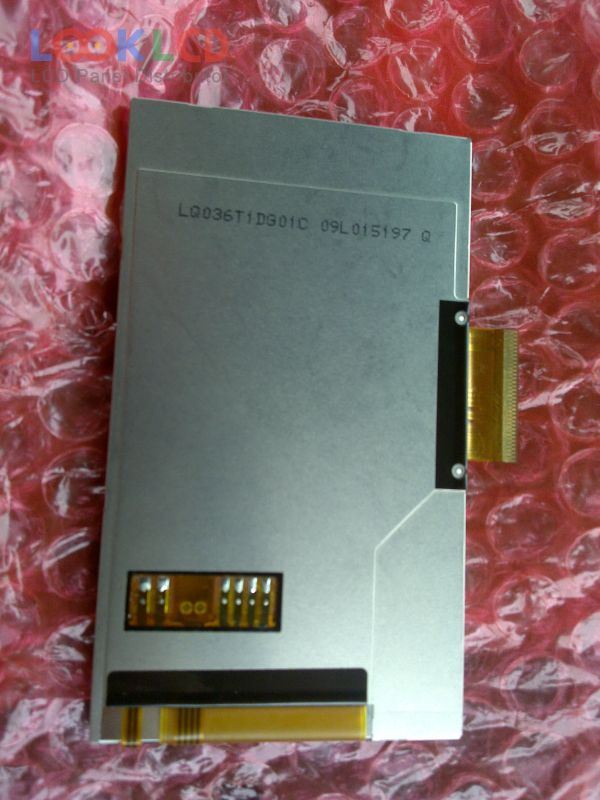

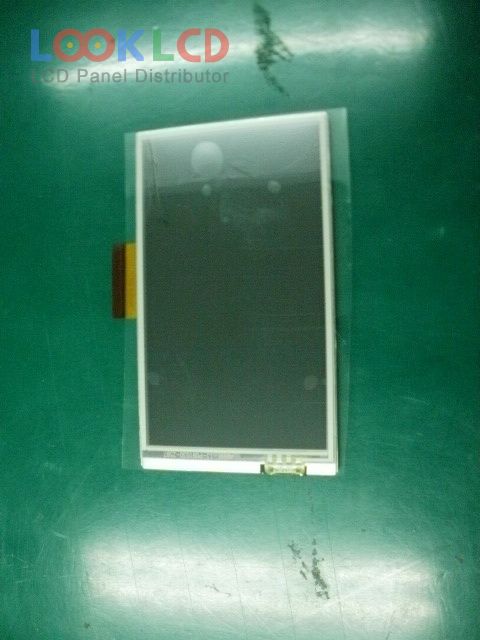

| PartZenbakia | LQ036T1DG01 |
| Marka | SHARP |
| Tamaina | 3.6 |
| Aplikazio | PND |
| Ebazpena | 272×480 |
| Konposizioa | LCM |
| Distira | 410 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ036T1DG01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 3.6 inch |
| ebazpena | 272(RGB)×480 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 44.472×78.48 mm |
| eskema | 51.8×90 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 410 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 30/30 (Typ.)(Tr/Td) |
| ikuspegi angelua | 40/60/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | Parallel RGB + SPI, 67 pins |
| sarrerako tentsioa | 1.8/2.5V (Typ.)(VDDIO/VCI) |
| aplikazio | PND |
