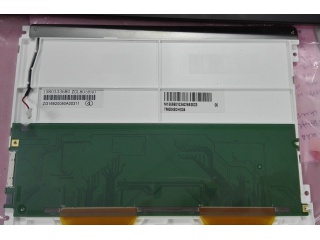

| PartZenbakia | TM084SDHG04 |
| Marka | TIANMA |
| Tamaina | 8.4 |
| Aplikazio | Industrial |
| Ebazpena | 800×600 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | 8S3P |
| Interfazea | LVDS |
| panel marka | TIANMA |
| panel eredua | TM084SDHG04 |
| panelaren tamaina | 8.4" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 800(RGB)×600, SVGA, 119PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 170.4(W)×127.8(H) mm |
| bezela irekidura | 173.0(W)×130.6(H) mm |
| eskema tamaina | 203(W)×143.5(H) ×7.05(D) mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikuspegi angelua | 70/70/60/70 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | 12 o'clock |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K 40% NTSC |
| lanpara mota | 8S3P WLED , 30K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | Without |
| panelaren pisua | 240g (Typ.) |
| aplikazio | Industrial |
| seinale interfazea | LVDS (1 ch, 6-bit) , 20 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
