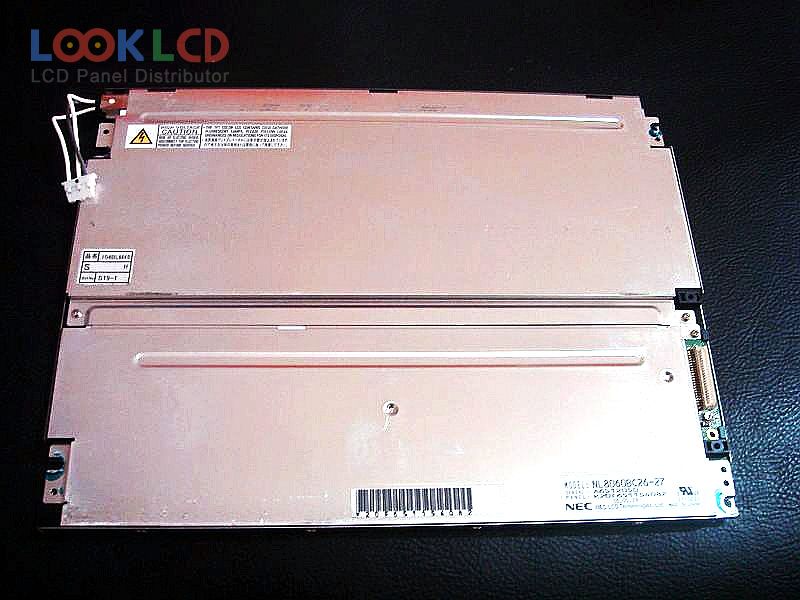

| PartZenbakia | NL6448BC26-27 |
| Marka | NLT |
| Tamaina | 8.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 1000:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL6448BC26-27 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 170.88×128.16 mm |
| eskema | 200×152 mm |
| azalera | Clear, Hard coating (3H) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| erantzun denbora | 3/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3 stringsWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
