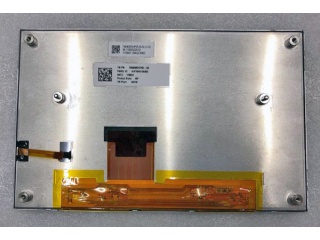

| PartZenbakia | TM080RDHP07 |
| Marka | TIANMA |
| Tamaina | 8.0 |
| Aplikazio | Automotive Display |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| marka | TIANMA |
| diagonalaren tamaina | 8.0 inch |
| pixel formatua | 800(RGB)×480 [WVGA] 116PPI |
| eremu aktiboa | 174(H)×104.4(V) mm |
| bezela eremua | 177(H)×107.4(V) mm |
| luminantzia | 600 cd/m² (Typ.) |
| ikusi norabidea | Symmetry |
| ikuspegi angelua | 88/88/88/88 (Typ.)(CR≥10) |
| euskarria kolorea | 16.7M 71% NTSC |
| pisua | TBD |
| fotograma-tasa | 60Hz |
| interfaze mota | Parallel RGB (1 ch, 8-bit) , 60 pins FPC |
| energia hornidura | 3.3/6.0/-6.0/17/-8V (Typ.)(VCC/VDDP/VDDN/VGH/VGL) |
| ingurunea | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| eredua | TM080RDHP07 |
| mota | a-Si TFT-LCD , LCM |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | 190.4(H)×120.7(V) ×16.1(D) mm |
| tratamendua | Antiglare |
| kontraste-erlazioa | 1000:1 (Typ.) (TM) |
| erantzun denbora | 50 (Max.)(Tr+Td) |
| funtzionamendu modua | SFT, Normally Black, Transmissive |
| argi iturria | WLED [8S2P] , 20K hours , W/O Driver |
| entzat diseinatua | Automotive Display |
| ukipen-panela | Without |
