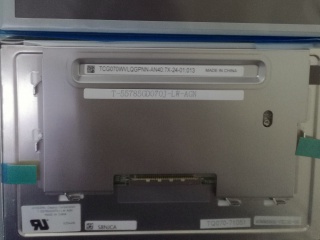

| PartZenbakia | TCG070WVLQGPNN-AN40 |
| Marka | Kyocera |
| Tamaina | 7.0 |
| Aplikazio | Industrial Outdoor H |
| Ebazpena | 800×480 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 750:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| fabrikatzailea | Kyocera |
| pantailaren tamaina | 7.0 inch |
| pixel-zenbakia | 800(RGB)×480 (WVGA) 133PPI |
| eremu aktiboa (mm) | 152.4 × 91.44 (H×V) |
| bezela eremua (mm) | 154.4 × 93.4 (H×V) |
| luminantzia | 1000 cd/m² (Typ.) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| ikuspegi ona | Symmetry |
| kolore-sakonera | 262K/16.2M 50% NTSC |
| masa | 230g |
| freskatze tasa | 60Hz |
| seinale mota | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| tentsio-hornidura | 3.3V (Typ.) |
| gehienez. balorazioak | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| ereduaren izena | TCG070WVLQGPNN-AN40 |
| pantaila mota | LCM , a-Si TFT-LCD |
| antolamendua | RGB Vertical Stripe |
| eskema (mm) | 169.8 × 109.7 × 9.7 (H×V×D) |
| tratamendua | Antiglare |
| kontraste-erlazioa | 750 : 1 (Typ.) (TM) |
| erantzuna | 18/12 (Typ.)(Tr/Td) ms |
| lan egiteko modua | AWV, Normally Black, Transmissive |
| atzeko argia | WLED , 70K hours , With LED Driver |
| erabiltzen | Industrial Outdoor High Brightness Automotive Display |
| pantaila taktila | Without |
