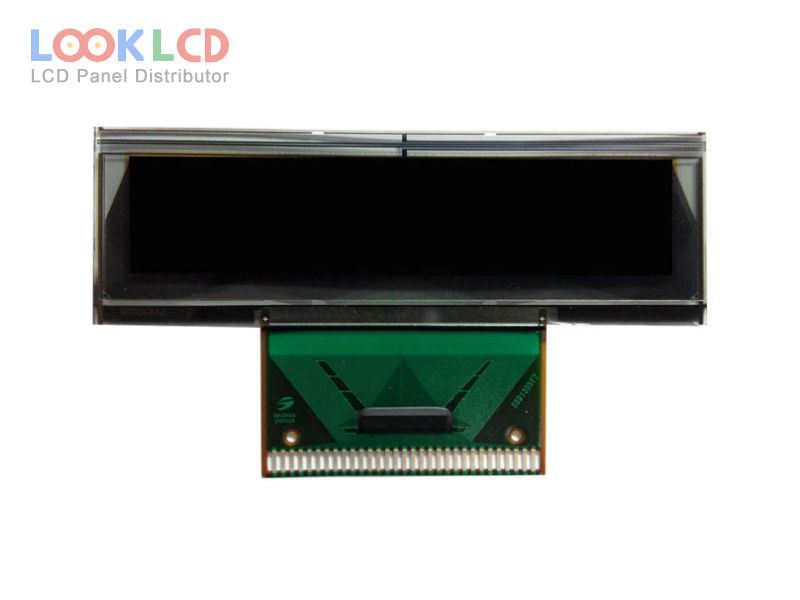

OEL9M0064-R-E

OEL9M0064-R-E
OEL9M0064-R-E thumb
Marka
Other
Tamaina
2.0
Aplikazio
IA
Ebazpena
128×32
Konposizioa
OLED
Distira
CR
10000:1
Koloreak
Mono(Red)
Atzeko argia
self
Interfazea
CPU/SPI/I²C
In Stock
7927
Zehaztapenak

PartZenbakia OEL9M0064-R-E
MarkaOther
Tamaina2.0
AplikazioIA
Ebazpena128×32
KonposizioaOLED
Distira
CR10000:1
KoloreakMono(Red)
Atzeko argiaself
InterfazeaCPU/SPI/I²C
panel markaTRULY
panel ereduaOEL9M0064-R-E
panel mota PM-OLED , OLED
panelaren tamaina2.0 inch
ebazpena128×32
eremu aktiboa50.535×10.695 mm
eskema59×18.86×1.6 mm
azalera
distira
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakMono(Red) (1-bit)
ikuspegi angelua80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
maiztasuna100Hz
gidariaren icTAB Built-in SSD1305T7R1
seinale interfazea8-bit 6800/8080 parallel, SPI, I²C, 31 pins
aplikazioIA
Familia Eredua
OEL9M0053-Y-E Other 1.6 128×64
OEL9M0064-W-E Other 2.0 128×32
OEL9M0065-G-E Other 2.7 256×64
OEL9M0065-Y-E Other 2.7 256×64
OEL9M0068-R-E Other 0.91 128×32
OEL9M0073-B-E Other 1.0 128×64
OEL9M0073-R-E Other 1.0 128×64
OEL9M0073-Y-E Other 1.0 128×64
OEL9M0082-Y-E Other 1.1 128×128
OEL9M0084-R-E Other 0.91 128×32
