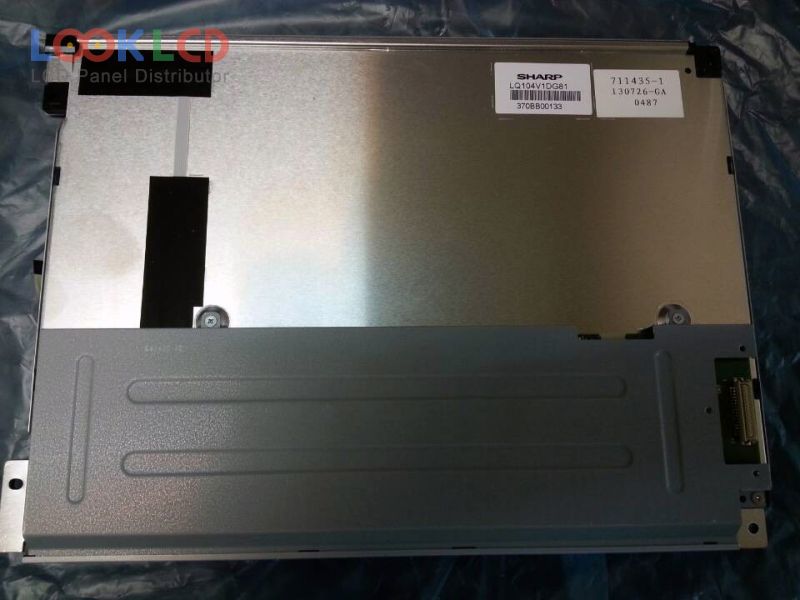

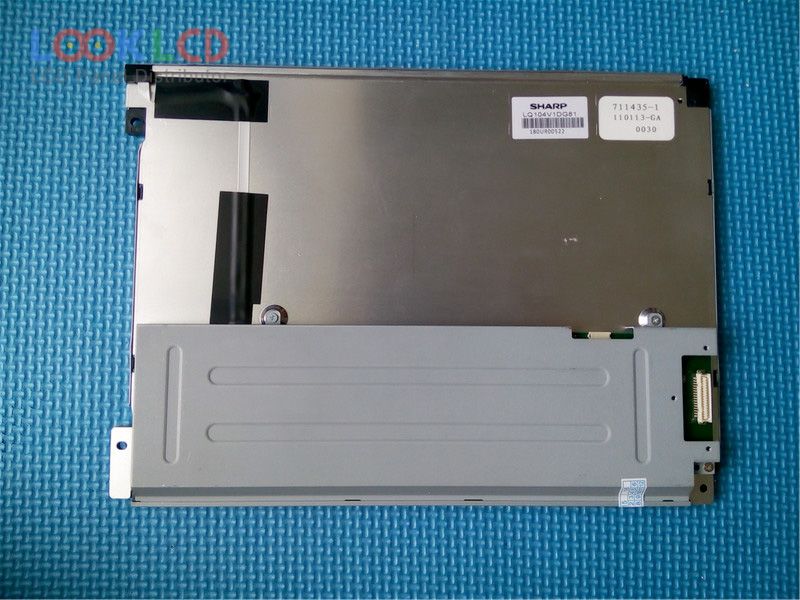

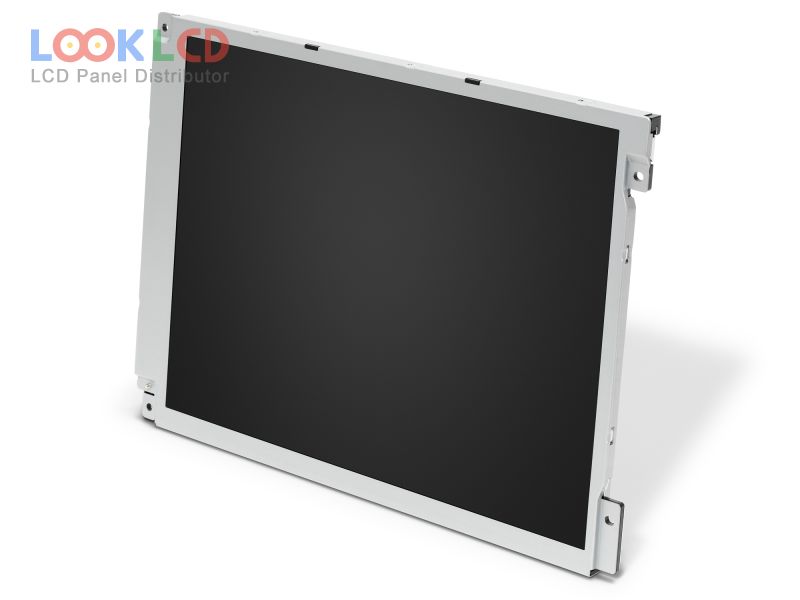

| PartZenbakia | LQ104V1DG81 |
| Marka | SHARP |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 450 |
| CR | 800:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ104V1DG81 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 246.5×179.3×13 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 450 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193150% |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/65/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | CMOS (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
