Other OEL9M0064-W-E fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

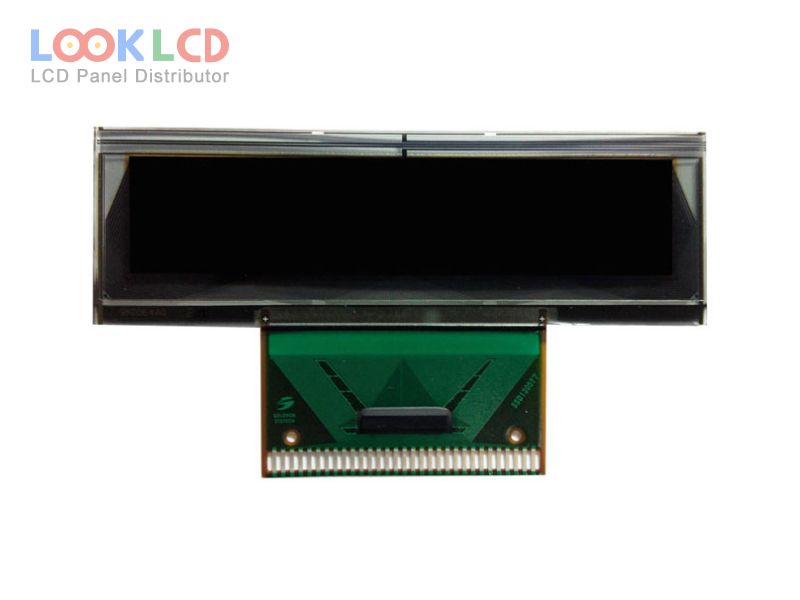

OEL9M0064-W-E

OEL9M0064-W-E
OEL9M0064-W-E thumb
Marka
Other
Tamaina
2.0
Aplikazio
IA
Ebazpena
128×32
Konposizioa
OLED
Distira
60
CR
10000:1
Koloreak
Mono(White)
Atzeko argia
self
Interfazea
CPU/SPI/I²C
In Stock
1607
Zehaztapenak

PartZenbakia OEL9M0064-W-E
MarkaOther
Tamaina2.0
AplikazioIA
Ebazpena128×32
KonposizioaOLED
Distira60
CR10000:1
KoloreakMono(White)
Atzeko argiaself
InterfazeaCPU/SPI/I²C
panel markaTRULY
panel ereduaOEL9M0064-W-E
panel mota PM-OLED , OLED
panelaren tamaina2.0 inch
ebazpena128×32
eremu aktiboa50.535×10.695 mm
eskema59×18.86×1.6 mm
azalera
distira60 cd/m² (Min.)
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakMono(White) (1-bit)
ikuspegi angelua80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
maiztasuna100Hz
gidariaren icTAB Built-in SSD1305T7R1
seinale interfazea8-bit 6800/8080 parallel, SPI, I²C, 31 pins
aplikazioIA
