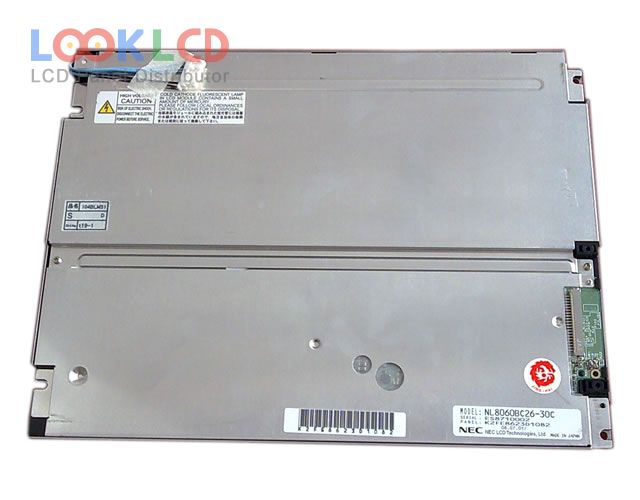

| PartZenbakia | NL8060BC26-30C |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 550 |
| CR | 900:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL8060BC26-30C |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 243×185.1×11 mm |
| azalera | Clear, Hard coating (2H), Antireflection |
| distira | 550 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| erantzun denbora | 3/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
