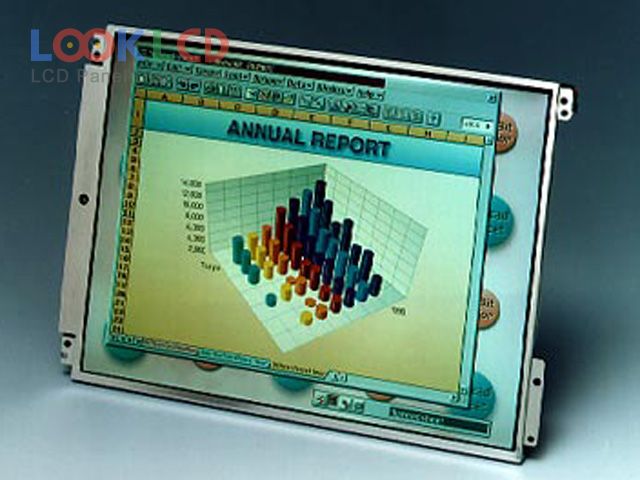

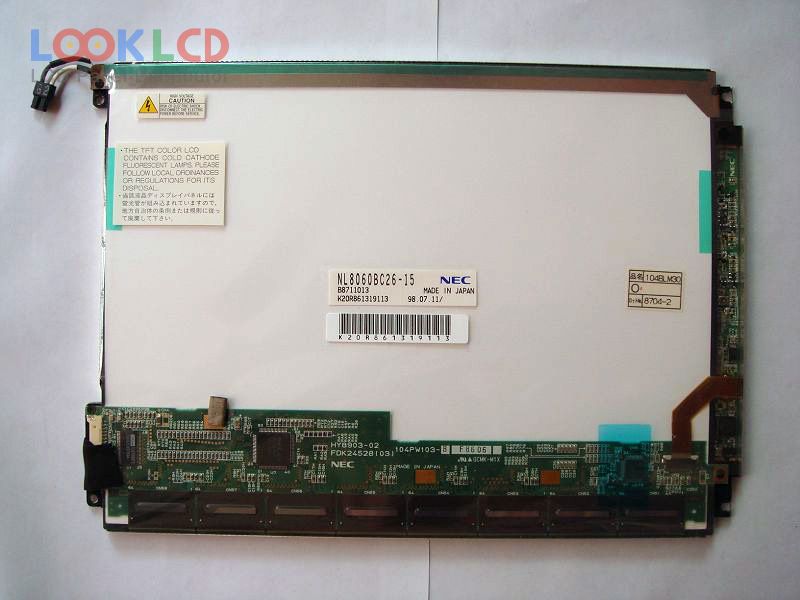

| PartZenbakia | NL8060BC26-15 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | NBPC |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 100 |
| CR | 150:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | NEC |
| panel eredua | NL8060BC26-15 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 237.8×170×6 mm |
| azalera | Antireflection |
| distira | 100 cd/m² (Typ.) |
| kontraste-erlazioa | 150:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | TBD |
| ikuspegi angelua | 50/50/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 14 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NBPC |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| NL8060AC26-11 | NLT | 10.4 | 800×600 |
| NL8060BC21-11 | NLT | 8.4 | 800×600 |
| NL8060BC21-11F | NLT | 8.4 | 800×600 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| NL8060BC26-28 | NLT | 10.4 | 800×600 |
| NL8060BC31-01 | NLT | 12.1 | 800×600 |
| NL8060BC31-28D | NLT | 12.1 | 800×600 |
| NL8060BC31-42D | NLT | 12.1 | 800×600 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| B133XW02 V0 | AUO | 13.3 | 1366×768 |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| B141EW04 V6 | AUO | 14.1 | 1280×800 |
| HSD121PHW2-A00 | HannStar | 12.1 | 1366×768 |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH2-TLQ1 | LG Display | 14.0 | 1366×768 |
| LTD121EW7V | TOSHIBA | 12.1 | 1280×800 |
| LTN140AT07-306 | Samsung | 14.0 | 1366×768 |
| LTN140AT26-L01 | Samsung | 14.0 | 1366×768 |
| NT140WHM-N31 | BOE | 14.0 | 1366×768 |
