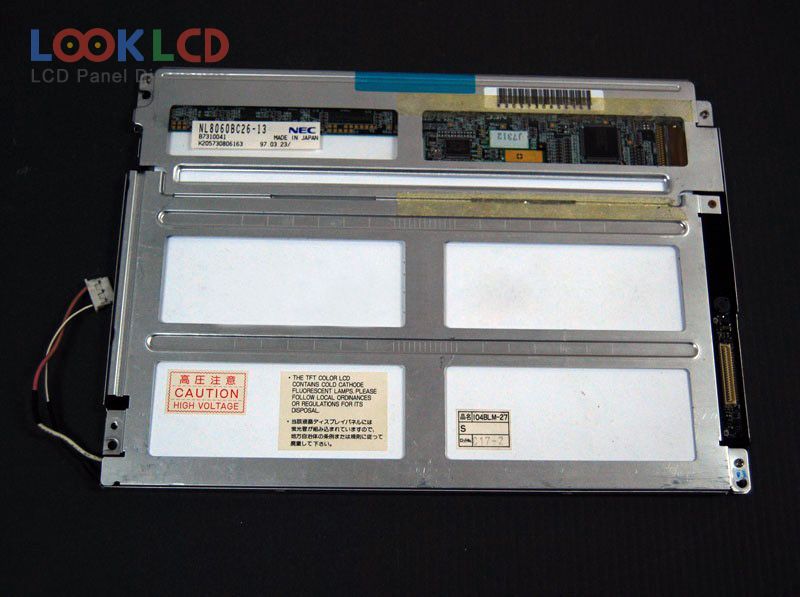

| PartZenbakia | NL8060BC26-13 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | NBPC |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 110 |
| CR | 150:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL8060BC26-13 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 242×173.9 mm |
| azalera | Antireflection |
| distira | 110 cd/m² (Typ.) |
| kontraste-erlazioa | 150:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193143% |
| erantzun denbora | 40 (Max.)(Tr) |
| ikuspegi angelua | 50/50/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 41 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| aplikazio | NBPC |
| NL8060AC26-52D | NLT | 10.4 | 800×600 |
| NL8060BC21-11 | NLT | 8.4 | 800×600 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
| NL8060BC26-30C | NLT | 10.4 | 800×600 |
| NL8060BC26-30D | NLT | 10.4 | 800×600 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| NL8060BC31-28D | NLT | 12.1 | 800×600 |
| NL8060BC31-42D | NLT | 12.1 | 800×600 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| NL8060BC31-47D | NLT | 12.1 | 800×600 |
| B133XW02 V0 | AUO | 13.3 | 1366×768 |
| B154EW01 V4 | AUO | 15.4 | 1280×800 |
| LP140WD2-TLD2 | LG Display | 14.0 | 1600×900 |
| LP140WH2-TLA1 | LG Display | 14.0 | 1366×768 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TPS2 | LG Display | 15.6 | 1366×768 |
| LTN154X2-L02 | Samsung | 15.4 | 1280×800 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| N141I3-L01 | Innolux | 14.1 | 1280×800 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
