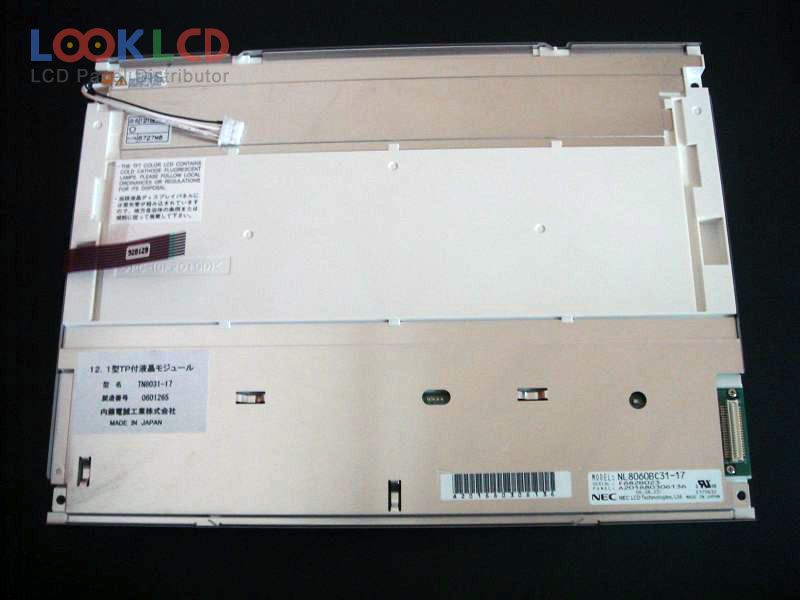

| PartZenbakia | NL8060BC31-17 |
| Marka | NLT |
| Tamaina | 12.1 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 350:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL8060BC31-17 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 246×184.5 mm |
| eskema | 280×210×13.7 mm |
| azalera | |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193143% |
| erantzun denbora | 15/55 (Typ.)(Tr/Td) |
| ikuspegi angelua | 55/55/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 41 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| aplikazio | IA |
| NL8060BC26-27 | NLT | 10.4 | 800×600 |
| NL8060BC26-28 | NLT | 10.4 | 800×600 |
| NL8060BC31-02 | NLT | 12.1 | 800×600 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| NL8060BC31-20 | NLT | 12.1 | 800×600 |
| NL8060BC31-27D | NLT | 12.1 | 800×600 |
| NL8060BC31-41D | NLT | 12.1 | 800×600 |
| NL8060BC31-41E | NLT | 12.1 | 800×600 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| EL640.400-C3 FRA | Lumineq | 9.1 | 640×400 |
| G084SN05 V5 | AUO | 8.4 | 800×600 |
| LJ089MB2S01 | SHARP | 8.9 | 640×400 |
| LM7MS623 | SHARP | 6.5 | 640×240 |
| LQ121S1DG41 | SHARP | 12.1 | 800×600 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NLB150XG01L-01 | NLT | 15.0 | 1024×768 |
| OEL9M0072-B-E | Other | 1.54 | 128×64 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
