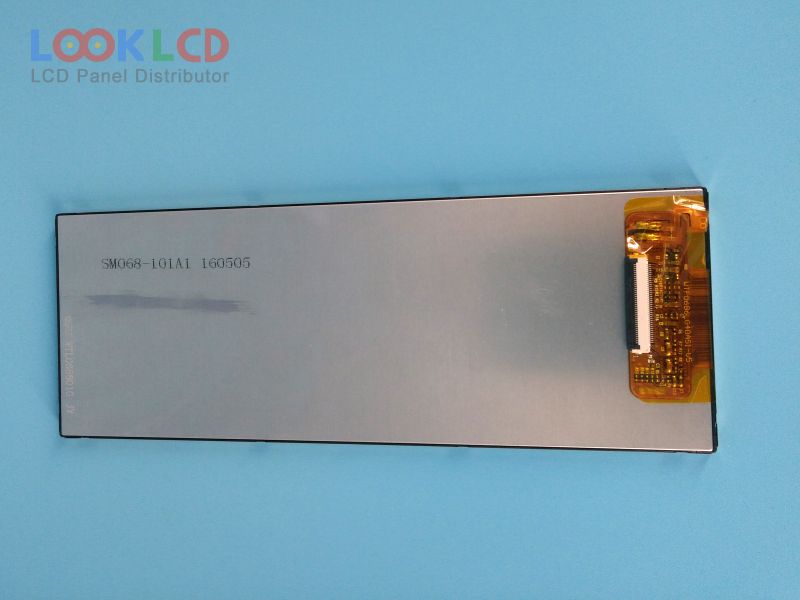

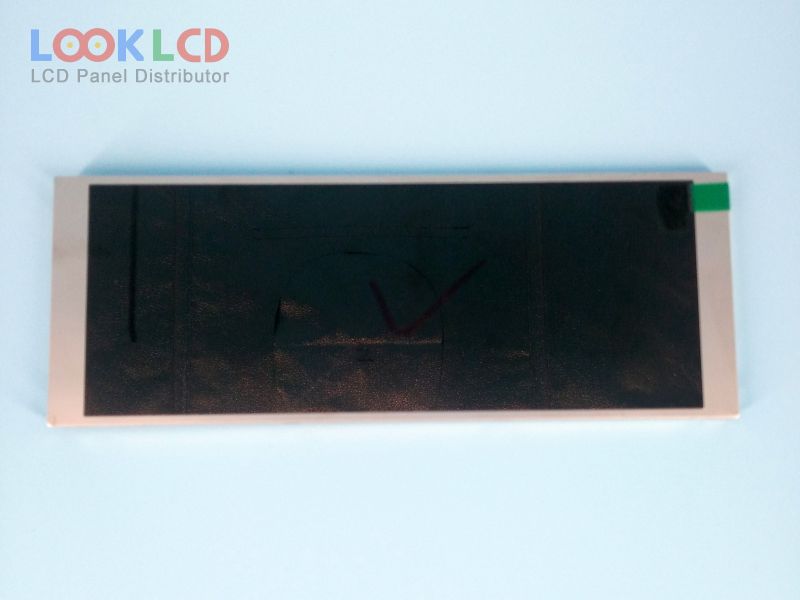

| PartZenbakia | ND068-101A1 |
| Marka | |
| Tamaina | 6.8 |
| Aplikazio | CNS |
| Ebazpena | 1280×480 |
| Konposizioa | LCM |
| Distira | 700 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | |
| panel eredua | ND068-101A1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 6.8 inch |
| ebazpena | 1280(RGB)×480 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 160.59×60.22 mm |
| eskema | 181×66.6×7.15 mm |
| azalera | |
| distira | 700 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193160% |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S6PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 1.8/3.3/9.7/18/-8V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| aplikazio | CNS |
