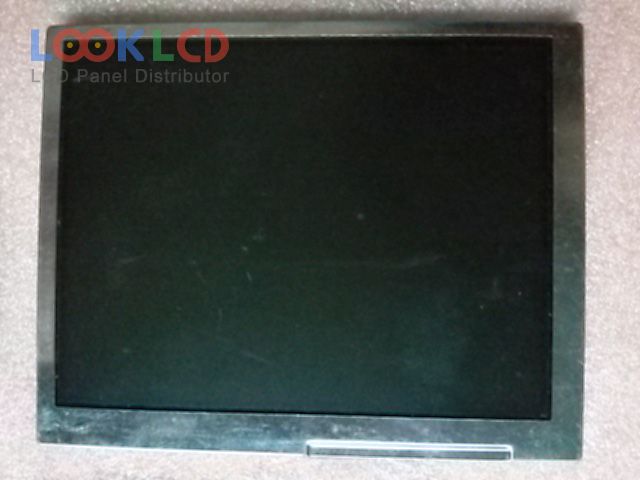

| PartZenbakia | PD040QX1 |
| Marka | E Ink |
| Tamaina | 4.0 |
| Aplikazio | CNS |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 400:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | PVI |
| panel eredua | PD040QX1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.0 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 81.12×60.84 mm |
| eskema | 93×73.5 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 15/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 4S2PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 8-bit), 60 pins |
| sarrerako tentsioa | 3.3/3.3/9.6/17.0/-8.0V (Typ.)(VCC1/VCC2/VDDA/VCG/VEE) |
| aplikazio | CNS |
