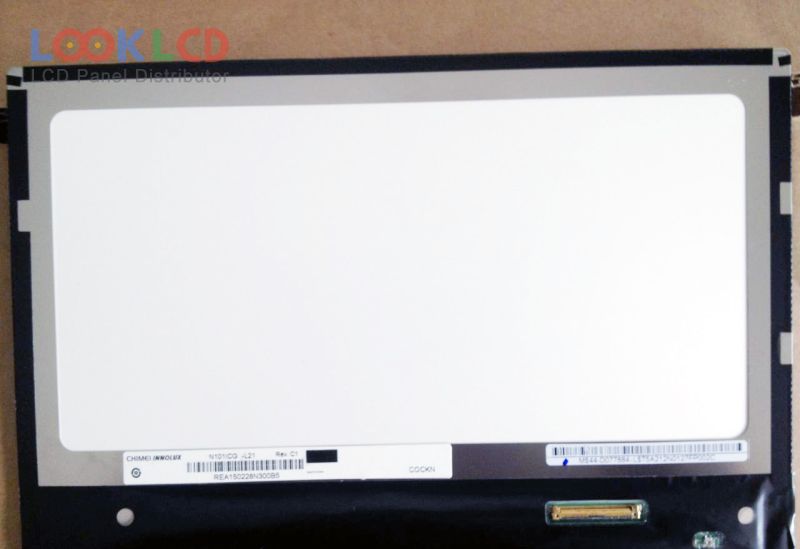

N101ICG-L21 Rev.C1

N101ICG-L21 Rev.C1
N101ICG-L21 Rev.C1 thumb
Marka
Innolux
Tamaina
10.1
Aplikazio
PAD
Ebazpena
1280×800
Konposizioa
LCM
Distira
350
CR
800:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
LVDS
In Stock
3180
Zehaztapenak

PartZenbakia N101ICG-L21 Rev.C1
MarkaInnolux
Tamaina10.1
AplikazioPAD
Ebazpena1280×800
KonposizioaLCM
Distira350
CR800:1
Koloreak262K
Atzeko argiaWLED
InterfazeaLVDS
panel markaCMO
panel ereduaN101ICG-L21 Rev.C1 2 Compatible model
panel mota a-Si TFT-LCD , LCM
panelaren tamaina10.1 inch
ebazpena1280(RGB)×800 , WXGA
bistaratzeko moduaAAS, Normally Black, Transmissive
eremu aktiboa216.96×135.6 mm
eskema227.42×147.69×4.85 mm
azaleraGlare (Haze 0%), Hard coating (3H)
distira350 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak262K (6-bit), CIE193150%
erantzun denbora14/11 (Typ.)(Tr/Td)
ikuspegi angelua85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara mota3 stringsWLEDEmbedded (LED Driver)
seinale interfazeaLVDS (1 ch, 6-bit), 40 pins
sarrerako tentsioa3.3V (Typ.)
aplikazioPAD
Familia Eredua
BP101WX1-210 BOE 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
N101ICG-L11 Innolux 10.1 1280×800
N101ICG-L21 Rev.A1 Innolux 10.1 1280×800
N101ICG-L21 Rev.B1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C2 Innolux 10.1 1280×800
VVX10F002A00 Panasonic 10.1 1920×1200
