Innolux N070ICE-G02 Rev.C3 fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

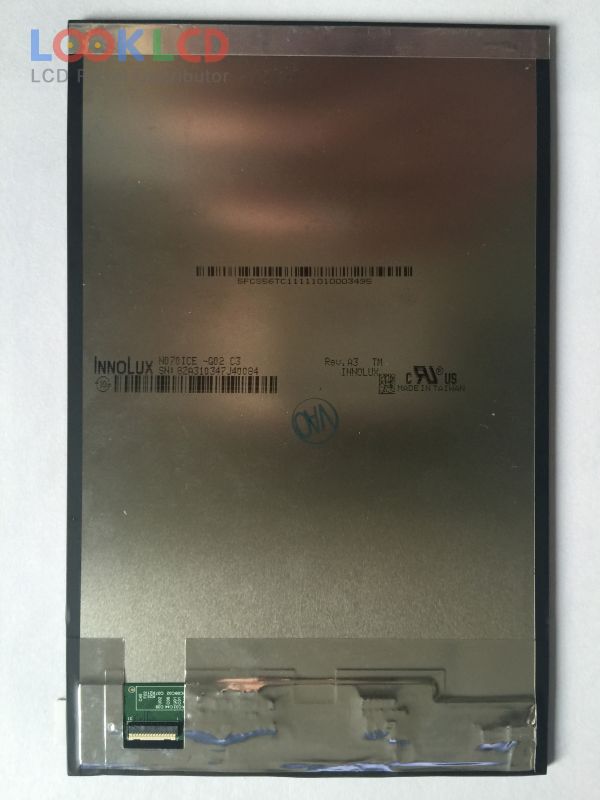

N070ICE-G02 Rev.C3

N070ICE-G02 Rev.C3
N070ICE-G02 Rev.C3 thumb
Marka
Innolux
Tamaina
7.0
Aplikazio
PAD
Ebazpena
800×1280
Konposizioa
LCM
Distira
300
CR
800:1
Koloreak
16.7M
Atzeko argia
WLED
Interfazea
MIPI
In Stock
700
Zehaztapenak

PartZenbakia N070ICE-G02 Rev.C3
MarkaInnolux
Tamaina7.0
AplikazioPAD
Ebazpena800×1280
KonposizioaLCM
Distira300
CR800:1
Koloreak16.7M
Atzeko argiaWLED
InterfazeaMIPI
panel markaINNOLUX
panel ereduaN070ICE-G02 Rev.C3
panel mota a-Si TFT-LCD , LCM
panelaren tamaina7.0 inch
ebazpena800(RGB)×1280 , WXGA
bistaratzeko moduaAAS, Normally Black, Transmissive
eremu aktiboa94.2×150.72 mm
eskema103.5×162.22×4.51 mm
azaleraGlare (Haze 0%), Hard coating (3H)
distira300 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak16.7M (8-bit), CIE193160%
erantzun denbora11/9 (Typ.)(Tr/Td)
ikuspegi angelua89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara mota3S6PWLEDWithout Driver
seinale interfazeaMIPI (4 data lanes), 31 pins
sarrerako tentsioa1.8/3.3V (Typ.)(VDDI/VCI)
aplikazioPAD
Familia Eredua
70WVW3T SII 7.0 800×480
A070VW08 V2 AUO 7.0 800×480
C070VW04 V6 AUO 7.0 800×480
LQ070T5DG01 SHARP 7.0 854×480
LQ070T5DG30 SHARP 7.0
M070SWP1 R4 IVO 7.0 800×480
N070ICE-G02 Rev.A2 Innolux 7.0 800×1280
N070ICE-G02 Rev.C3 Innolux 7.0 800×1280
N070ICE-GB1 Innolux 7.0 800×1280
N070ICE-GB2 Innolux 7.0 800×1280
