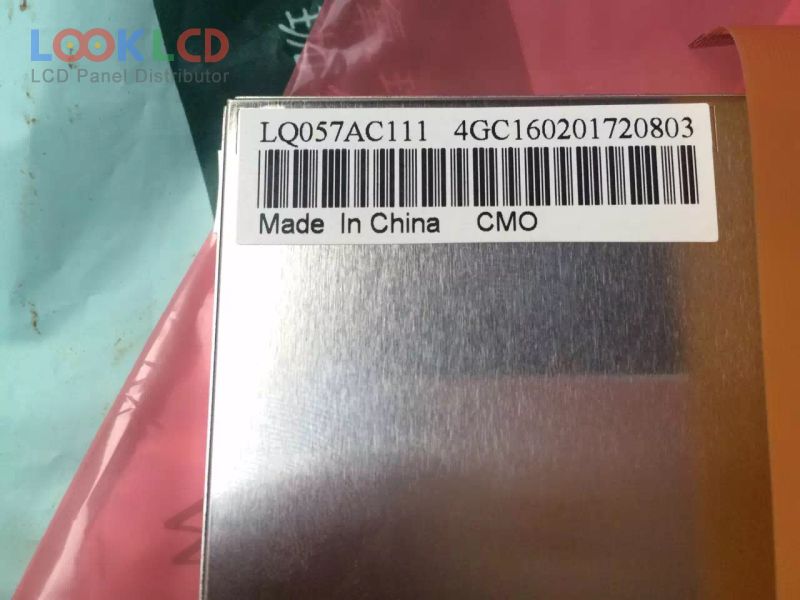

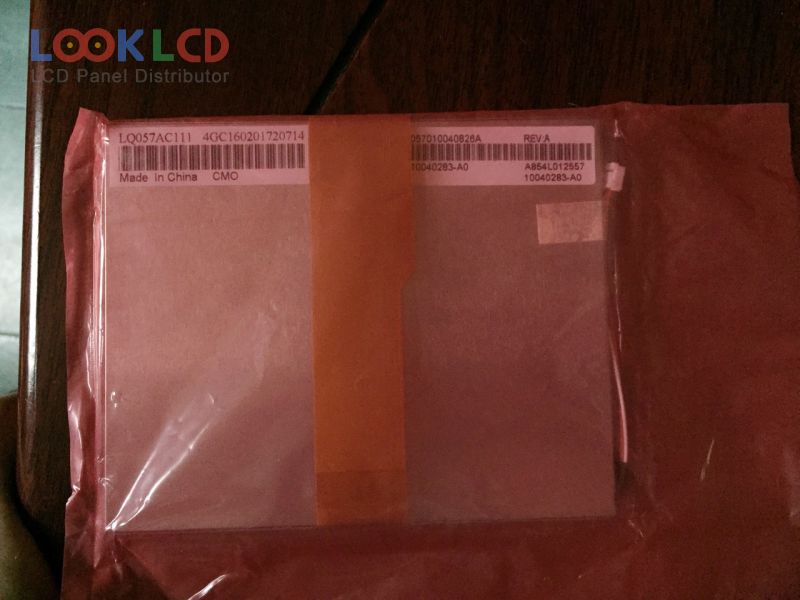

| PartZenbakia | LQ057AC111 |
| Marka | Other |
| Tamaina | 5.7 |
| Aplikazio | IA |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 200:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | Parallel/Serial |
| panel marka | CHILIN |
| panel eredua | LQ057AC111 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.7 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 115.2×86.4 mm |
| eskema | 126×101.55 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 200:1 (Typ.) |
| bistaratzeko koloreak | 16.7M |
| erantzun denbora | 15/35 (Typ.)(Tr/Td) |
| ikuspegi angelua | 65/65/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S7PWLEDWithout Driver |
| seinale interfazea | Digital RGB (8/24-bit), CCIR601/656, 50 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VDD/AVDD) |
| aplikazio | IA |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057Q3DC02 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC12 | SHARP | 5.7 | 320×240 |
| LQ057Q3DG02 | SHARP | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| AA121SJ03 | Mitsubishi | 12.1 | 800×600 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| EL320.256-FD6 | Lumineq | 4.8 | 320×256 |
| EL320.256-FD7 HB | Lumineq | 4.8 | 320×256 |
| ELT256.120.90 | Lumineq | 10.0 | 256×120 |
| KG057QV1CF-G050 | Kyocera | 5.7 | 320×240 |
| KL6448USTS-FFW | Kyocera | 6.9 | 640×480 |
| LM215WF3-SLC1 | LG Display | 21.5 | 1920×1080 |
| NL6448BC33-64E | NLT | 10.4 | 640×480 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
