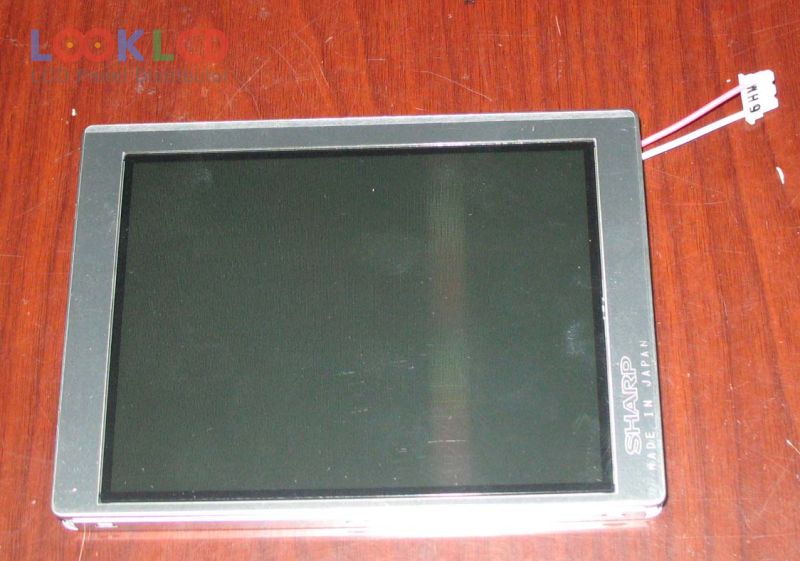

| PartZenbakia | LQ057Q3DC02 |
| Marka | SHARP |
| Tamaina | 5.7 |
| Aplikazio | IA |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 60:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ057Q3DC02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.7 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 115.2×86.4 mm |
| eskema | 144×104.6×13.5 mm |
| azalera | Hard coating (3H), Antireflection |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 60:1 (Min.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 30/50 (Typ.)(Tr/Td) |
| ikuspegi angelua | 65/65/65/40 (Typ.)(CR≥5)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 33 pins |
| sarrerako tentsioa | 3.3V (Typ.)(VCC) |
| aplikazio | IA |
