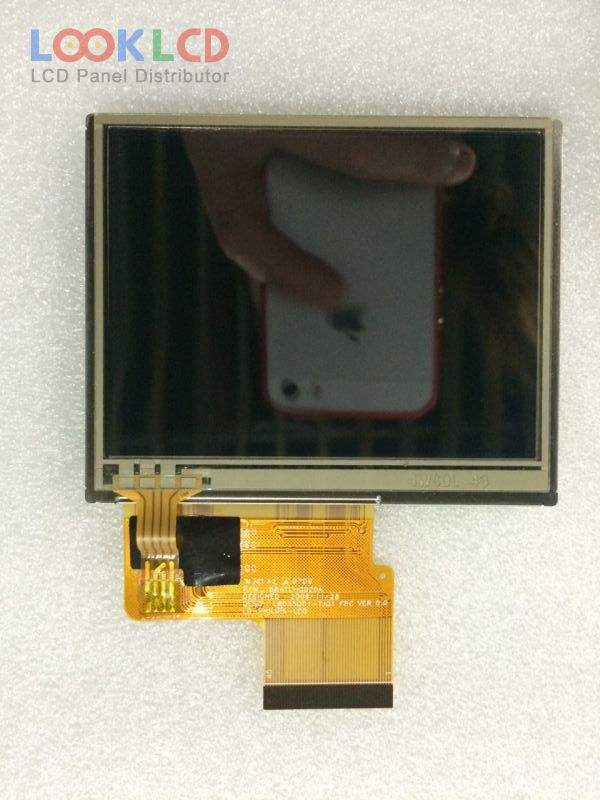

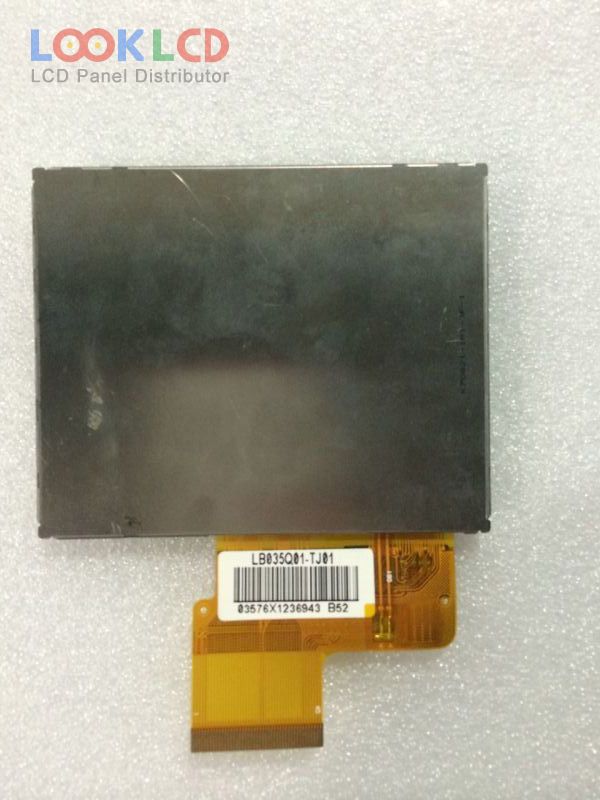

| PartZenbakia | LB035Q01-TJ01 |
| Marka | LG Display |
| Tamaina | 3.5 |
| Aplikazio | PND |
| Ebazpena | 320×240 |
| Konposizioa | CELL |
| Distira | 0 |
| CR | 300:1 |
| Koloreak | 16.7M |
| Atzeko argia | No B/L |
| Interfazea | TTL |
| panel marka | LG.Philips LCD |
| panel eredua | LB035Q01-TJ01 |
| panel mota | a-Si TFT-LCD , CELL |
| panelaren tamaina | 3.5 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 70.08×52.56 mm |
| eskema | 78.1×62.95×1.53 mm |
| azalera | Hard coating |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 70Hz |
| seinale interfazea | TTL (1 ch, 8-bit), 45 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VDD/AVDD) |
| rohs: | |
| aplikazio | PND |
