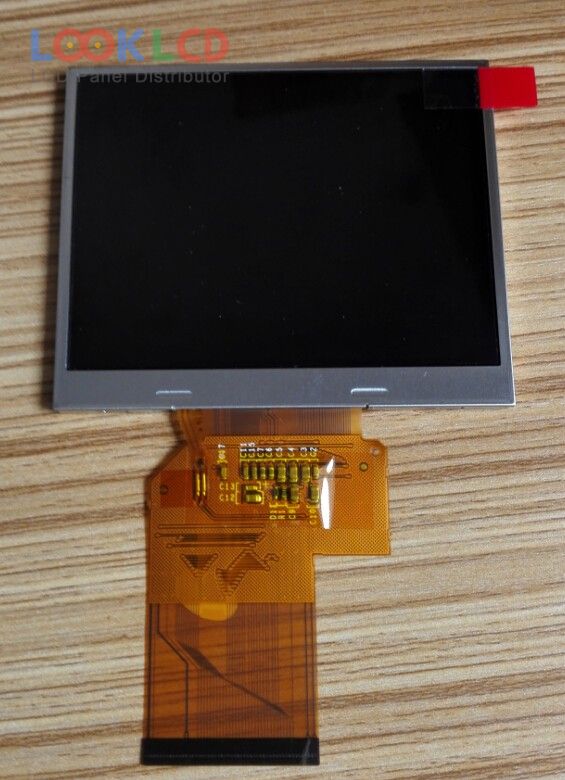

TM035KDH16-09

TM035KDH16-09
TM035KDH16-09
TM035KDH16-09 thumb TM035KDH16-09 thumb
Marka
Tianma
Tamaina
3.5
Aplikazio
DSC
Ebazpena
320×240
Konposizioa
LCM
Distira
330
CR
500:1
Koloreak
16.7M
Atzeko argia
WLED
Interfazea
Parallel/Serial
In Stock
1708
Zehaztapenak

PartZenbakia TM035KDH16-09
MarkaTianma
Tamaina3.5
AplikazioDSC
Ebazpena320×240
KonposizioaLCM
Distira330
CR500:1
Koloreak16.7M
Atzeko argiaWLED
InterfazeaParallel/Serial
panel markaTIANMA
panel ereduaTM035KDH16-09
panel mota a-Si TFT-LCD , LCM
panelaren tamaina3.5 inch
ebazpena320(RGB)×240 , QVGA
bistaratzeko moduaTN, Normally White, Transmissive
eremu aktiboa70.08×52.56 mm
eskema76.9×63.9×3.35 mm
azaleraAntiglare
distira330 cd/m² (Typ.)
kontraste-erlazioa500:1 (Typ.)
bistaratzeko koloreak16.7M (8-bit), CIE193150%
erantzun denbora20 (Typ.)(Tr+Td)
ikuspegi angelua70/70/60/70 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara mota6S1PWLEDWithout Driver
seinale interfazeaDigital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins
sarrerako tentsioa3.3V (Typ.)
aplikazioDSC
