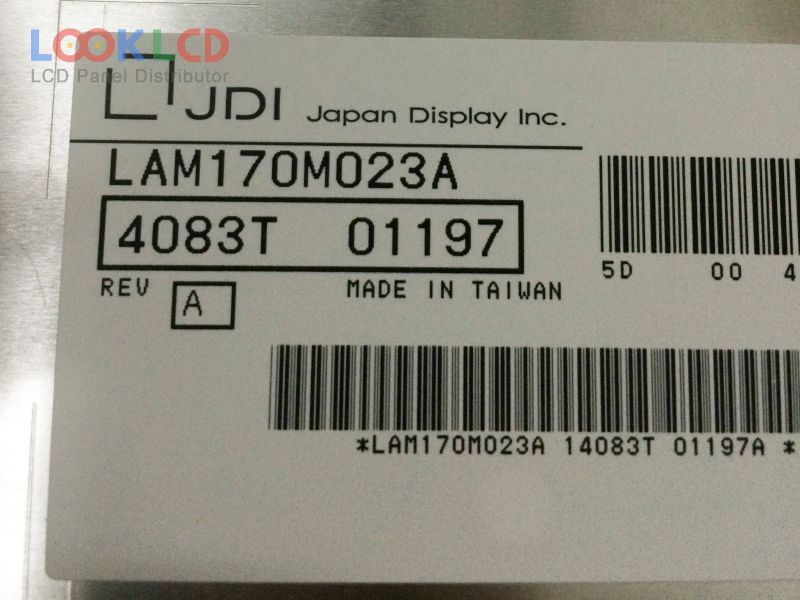

| PartZenbakia | LAM170M023A |
| Marka | JDI |
| Tamaina | 17.0 |
| Aplikazio | MD |
| Ebazpena | 1280×1024 |
| Konposizioa | LCM |
| Distira | 240 |
| CR | 900:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | JDI |
| panel eredua | LAM170M023A |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1280(RGB)×1024 , SXGA |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| eremu aktiboa | 337.92×270.336 mm |
| eskema | 368×306×20.4 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 240 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193174% |
| erantzun denbora | 10/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3 stringsWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | MD |
