NLT NL160120BM27-03A fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

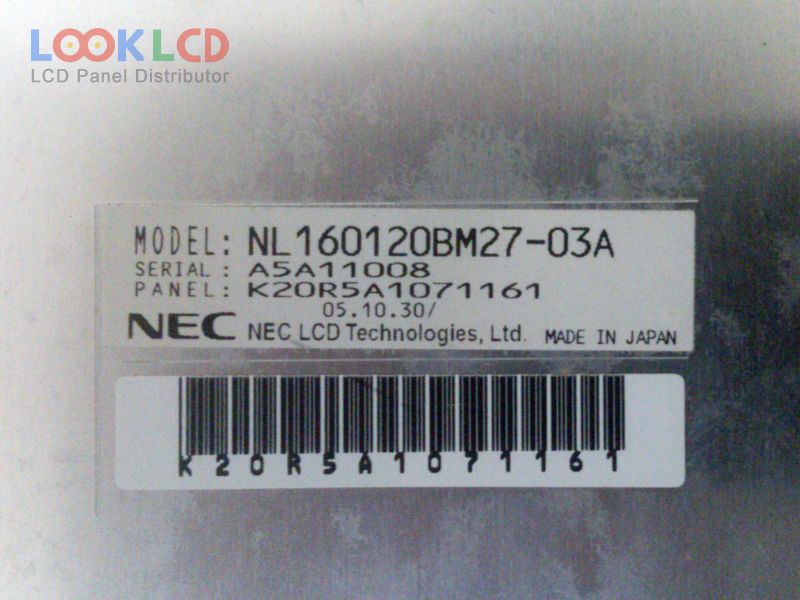

NL160120BM27-03A

NL160120BM27-03A
NL160120BM27-03A thumb
Marka
NLT
Tamaina
21.3
Aplikazio
MD
Ebazpena
1600×1200
Konposizioa
LCM
Distira
1000
CR
700:1
Koloreak
Grayscale
Atzeko argia
CCFL
Interfazea
LVDS
In Stock
121
Zehaztapenak

PartZenbakia NL160120BM27-03A
MarkaNLT
Tamaina21.3
AplikazioMD
Ebazpena1600×1200
KonposizioaLCM
Distira1000
CR700:1
KoloreakGrayscale
Atzeko argiaCCFL
InterfazeaLVDS
panel markaNEC
panel ereduaNL160120BM27-03A
panel mota a-Si TFT-LCD , LCM
panelaren tamaina21.3 inch
ebazpena1600(LCR)×1200 , UXGA
bistaratzeko moduaSA-SFT, Normally Black, Transmissive
eremu aktiboa432×324 mm
eskema457×350×25.5 mm
azaleraAntiglare, Hard coating (2H)
distira1000 cd/m² (Typ.)
kontraste-erlazioa700:1 (Typ.)
bistaratzeko koloreakGrayscale (8-bit)
erantzun denbora17/18 (Typ.)(Tr/Td)
ikuspegi angelua85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara mota6 pcsCCFLWithout Driver
seinale interfazeaLVDS (2 ch, 8-bit), 40 pins
sarrerako tentsioa12.0V (Typ.)
aplikazioMD
