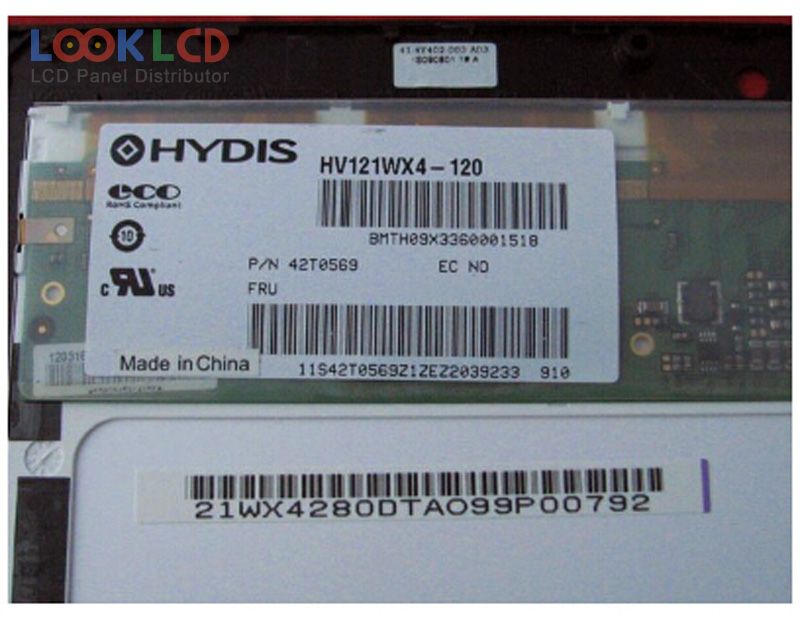

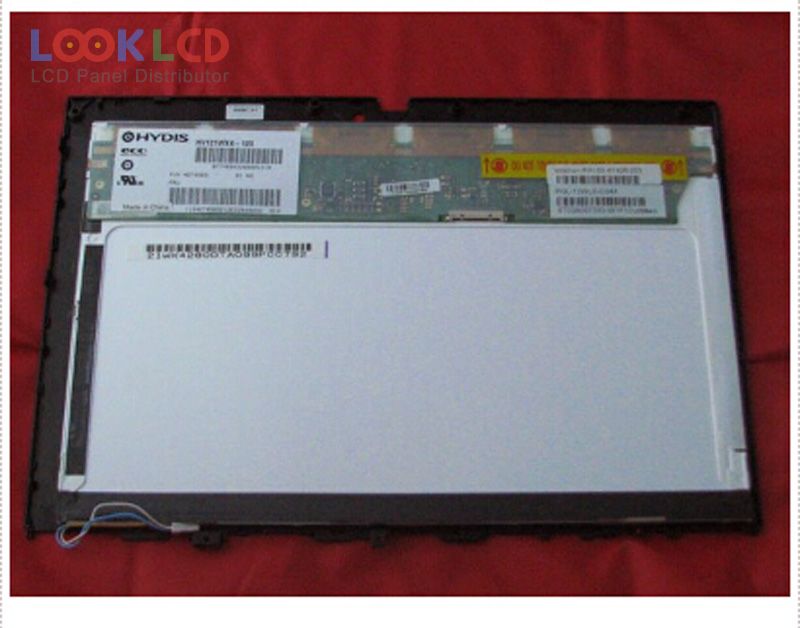

| PartZenbakia | HV121WX4-120 |
| Marka | HYDIS |
| Tamaina | 12.1 |
| Aplikazio | PAD |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | BOE HYDIS |
| panel eredua | HV121WX4-120 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | AFFS, Normally Black, Transmissive |
| eremu aktiboa | 261.12×163.2 mm |
| eskema | 275.8×178×6.7 mm |
| azalera | Antireflection |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 28/28 (Typ.)(Tr/Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| EE090NA-01C | Innolux | 9.0 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TPF0702001N | JDI | 7.0 | 1200×1920 |
