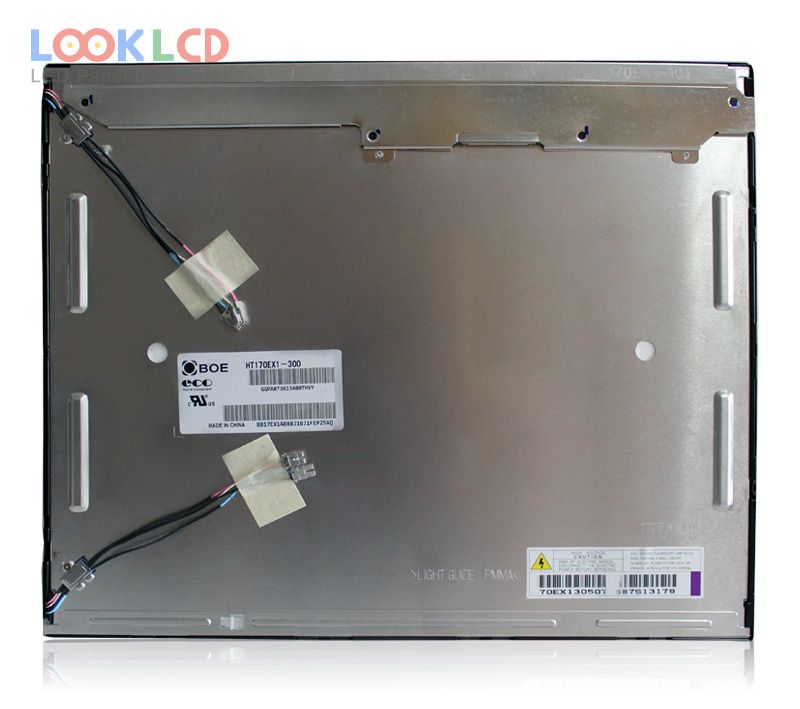

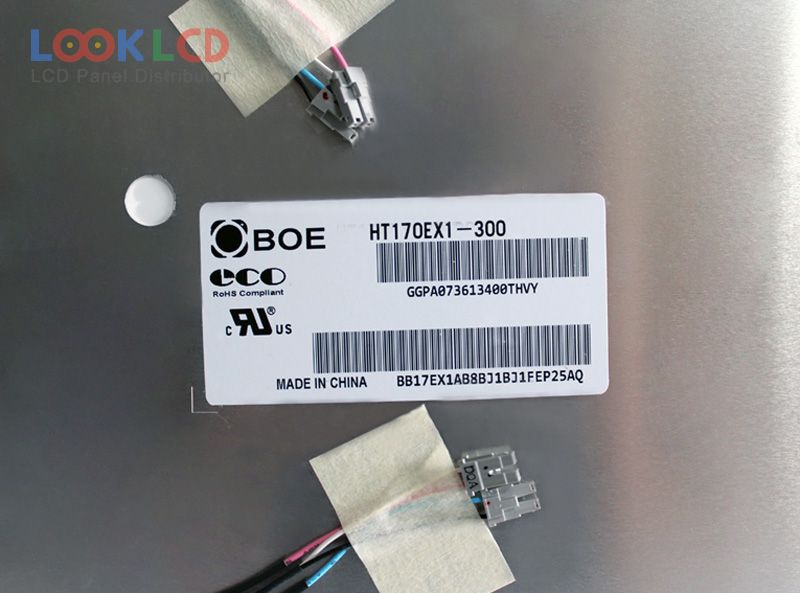

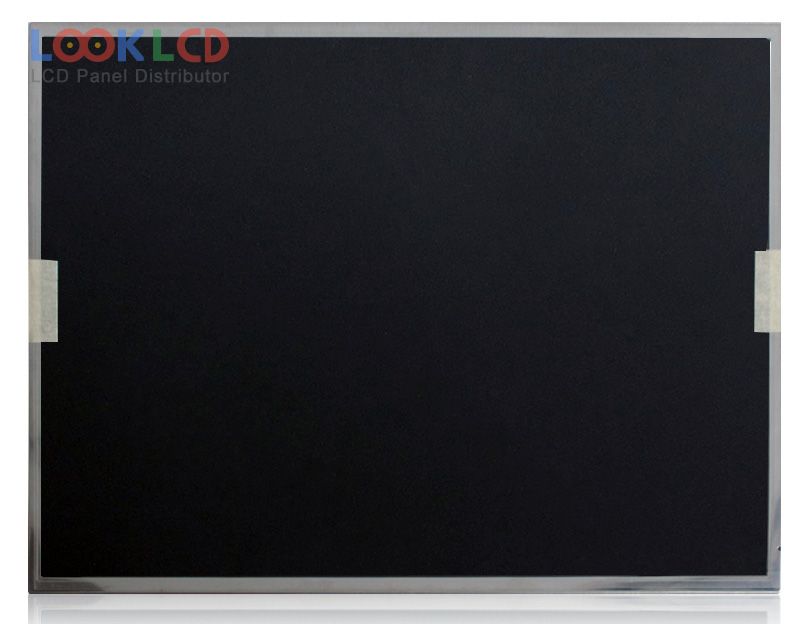

| PartZenbakia | HT170EX1-300 |
| Marka | BOE |
| Tamaina | 17.0 |
| Aplikazio | DMPC |
| Ebazpena | 1280×1024 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 800:1 |
| Koloreak | 16.2M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | HT170EX1-300 3 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1280(RGB)×1024 , SXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 337.92×270.336 mm |
| eskema | 354.9×290.3×13.5 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.2M (6-bit + FRC) |
| erantzun denbora | 1.5/3.5 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
| CLAA170EA07 | CPT | 17.0 | 1280×1024 |
| HT170E01-300 | BOE | 17.0 | 1280×1024 |
| HT170E02-100 | BOE | 17.0 | 1280×1024 |
| HT170EX1-101 | BOE | 17.0 | 1280×1024 |
| HT170EX1-300 | BOE | 17.0 | 1280×1024 |
| LM170E03-TLJ6 | LG Display | 17.0 | 1280×1024 |
| LQ170K1LW02 | SHARP | 17.0 | 1280×768 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
| HT15X15-D01 | HYDIS | 15.0 | 1024×768 |
| HT190WG1-600 | BOE | 19.0 | 1440×900 |
| LM201U04-SL03 | LG Display | 20.1 | 1600×1200 |
| LM240WU8-SLD2 | LG Display | 24.0 | 1920×1200 |
| LM270WF7-SSA1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SLC1 | LG Display | 27.0 | 2560×1440 |
| LTM170E8-L21 | Samsung | 17.0 | 1280×1024 |
| M190PP01 V0 | AUO | 19.0 | 1440×900 |
| M270HVN02.1 | AUO | 27.0 | 1920×1080 |
| MV215FHM-N30 | BOE | 21.5 | 1920×1080 |
