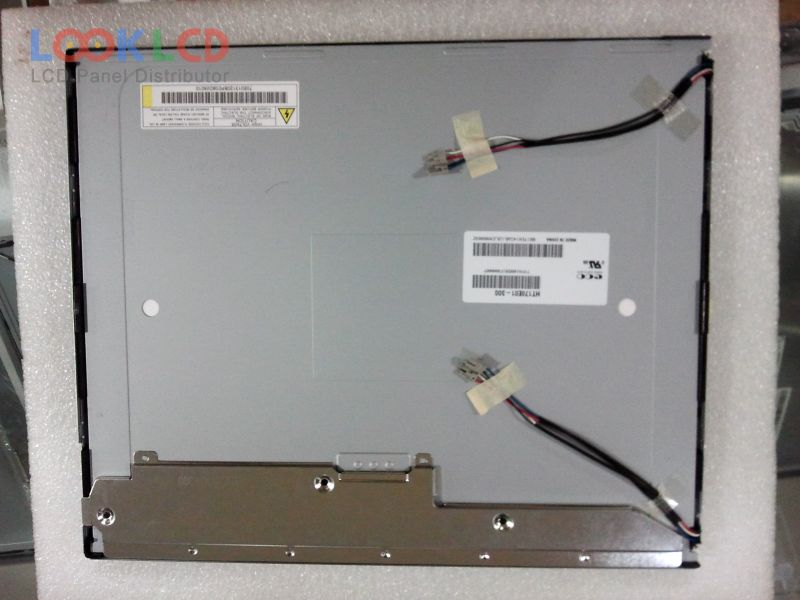

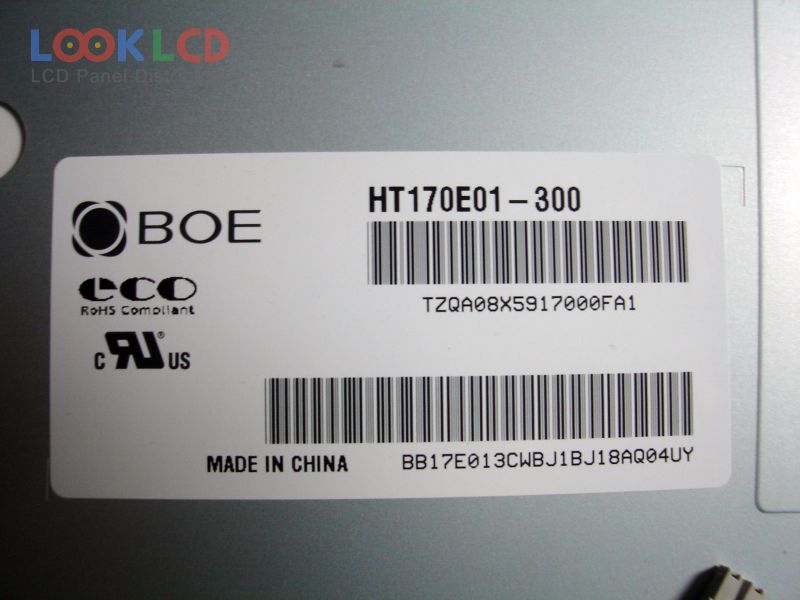

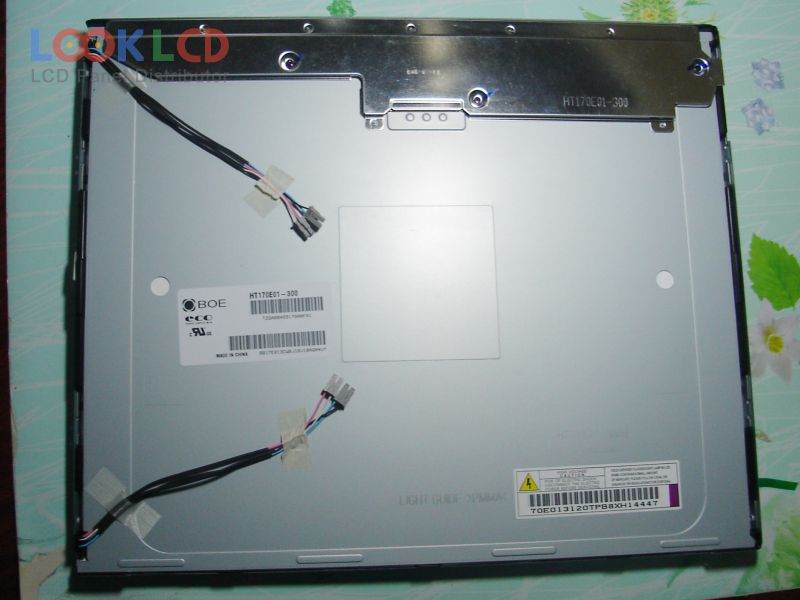

| PartZenbakia | HT170E01-300 |
| Marka | BOE |
| Tamaina | 17.0 |
| Aplikazio | DMPC |
| Ebazpena | 1280×1024 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 800:1 |
| Koloreak | 16.2M |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | HT170E01-300 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 17.0 inch |
| ebazpena | 1280(RGB)×1024 , SXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 337.92×270.336 mm |
| eskema | 358.5×296.5×17.5 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.2M (6-bit + FRC), CIE193172% |
| erantzun denbora | 1.5/3.5 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
| B170PW03 V5 | AUO | 17.0 | 1440×900 |
| G170ETN02.0 | AUO | 17.0 | 1280×1024 |
| HT170E01-300 | BOE | 17.0 | 1280×1024 |
| HT170E02-100 | BOE | 17.0 | 1280×1024 |
| HT170EX1-101 | BOE | 17.0 | 1280×1024 |
| HT170EX1-300 | BOE | 17.0 | 1280×1024 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLB1 | LG Display | 17.0 | 1280×1024 |
| LQ170M1LA12 | SHARP | 17.0 | 1920×1200 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
| LM201WE4-TLB2 | LG Display | 20.1 | 1680×1050 |
| LM215WF3-SLN1 | LG Display | 21.5 | 1920×1080 |
| LM230WF3-SLB2 | LG Display | 23.0 | 1920×1080 |
| LQ170E1LG18 | SHARP | 17.0 | 1280×1024 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| M190EN04 V5 | AUO | 19.0 | 1280×1024 |
| M200RW01 V6 | AUO | 20.0 | 1600×900 |
| M260J3-L01 | Innolux | 25.5 | 1920×1200 |
| M270HW01 V1 | AUO | 27.0 | 1920×1080 |
| SVA156WX1-01TB | SVA-NEC | 15.6 | 1366×768 |
