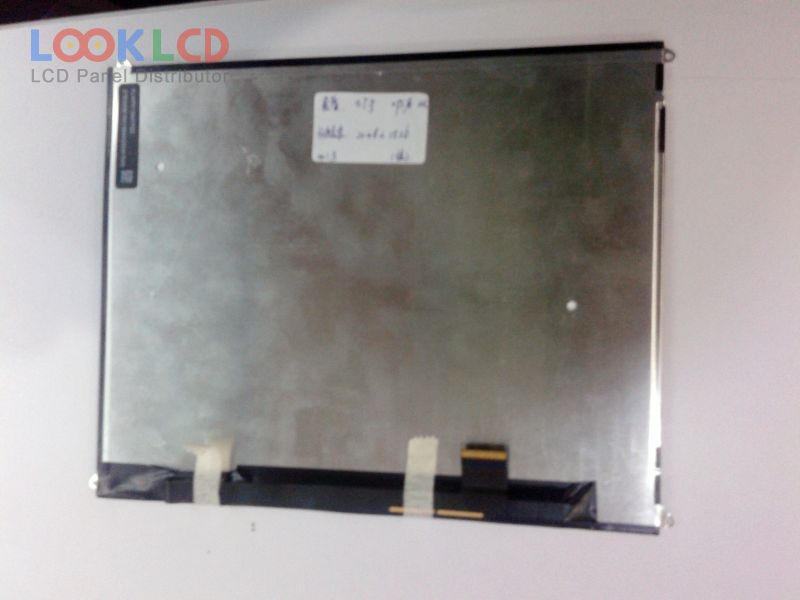

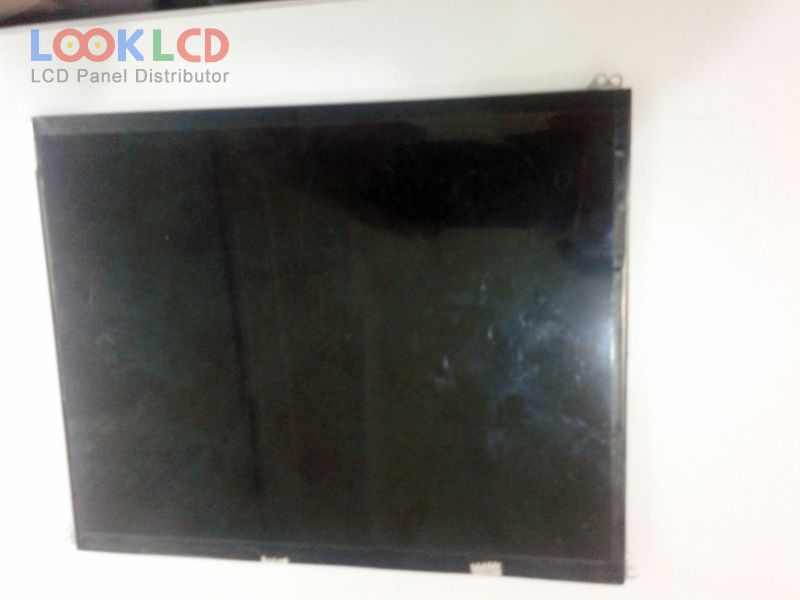

| PartZenbakia | HQ097QX1-IPS |
| Marka | Other |
| Tamaina | 9.7 |
| Aplikazio | PAD |
| Ebazpena | 2048×1536 |
| Konposizioa | LCM |
| Distira | 420 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | eDP |
| panel marka | No Brand |
| panel eredua | HQ097QX1-IPS 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 9.7 inch |
| ebazpena | 2048(RGB)×1536 , QXGA |
| bistaratzeko modua | PLS, Normally Black, Transmissive |
| eremu aktiboa | 196.608×147.456 mm |
| eskema | 208.88×167.12 mm |
| azalera | Glare (Haze 0%), Hard coating (2H), Reflection 1.45% (Max.) |
| distira | 420 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 16 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |

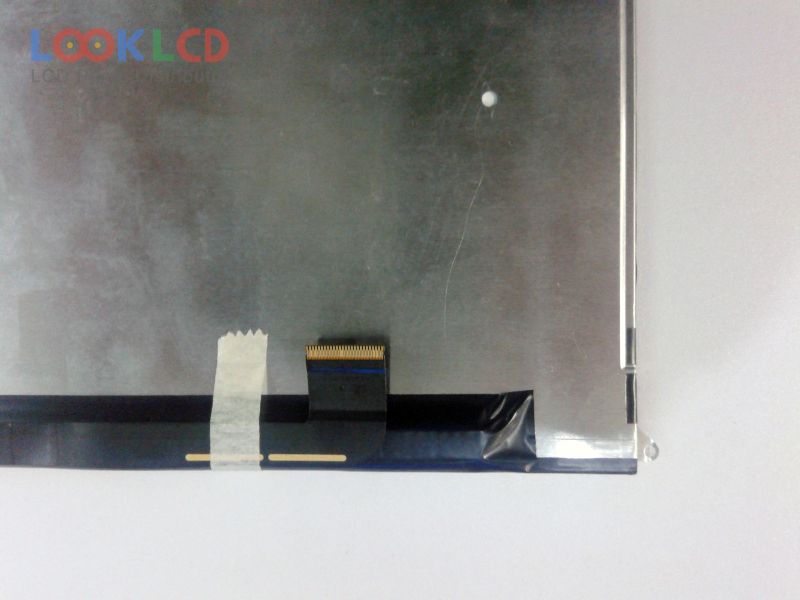

| seinale interfazea | eDP (4 Lanes), 51 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LP097X02-SLQA | LG Display | 9.7 | 1024×768 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| LTN097QL01-A02 | Samsung | 9.7 | 2048×1536 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| TV097X0M-NS0 | BOE | 9.7 | 768×1024 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
| LTN070NL01 | Samsung | 7.0 | 1024×600 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
