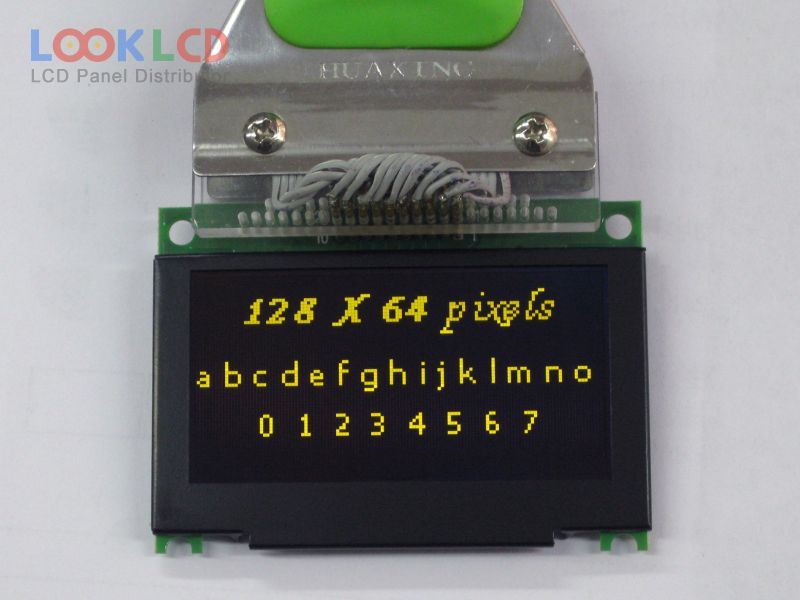

| PartZenbakia | HGS128645-Y-EH-LV |
| Marka | Other |
| Tamaina | 2.7 |
| Aplikazio | IA |
| Ebazpena | 128×64 |
| Konposizioa | OLED |
| Distira | 100 |
| CR | 2000:1 |
| Koloreak | Mono(Yellow) |
| Atzeko argia | self |
| Interfazea | CPU/SPI |
| panel marka | TSINGTEK |
| panel eredua | HGS128645-Y-EH-LV |
| panel mota | PM-OLED , OLED |
| panelaren tamaina | 2.7 inch |
| ebazpena | 128×64 |
| eremu aktiboa | 61.41×30.69 mm |
| eskema | 75×53.5×7 mm |
| azalera | |
| distira | 100 cd/m² (Typ.) |
| kontraste-erlazioa | 2000 : 1 (Min.) |
| bistaratzeko koloreak | Mono(Yellow) |
| ikuspegi angelua | 80/80/80/80 (Min.)(L/R/U/D) |
| gidariaren ic | Built-in SSD1325 |
| seinale interfazea | 8-bit 6800/8080 parallel, SPI, 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| rohs: | |
| aplikazio | IA |
