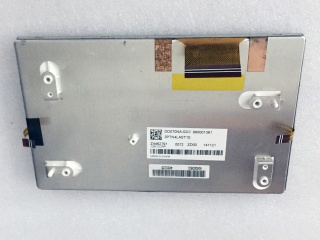

| PartZenbakia | DD070NA-02C |
| Marka | Chimei Innolux |
| Tamaina | 7.0 |
| Aplikazio | Automotive Display |
| Ebazpena | 800×480 |
| Konposizioa | LCM , a-Si TFT-LCD |
| Distira | |
| CR | 1600:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | CMOS |
| fabrikatzailea | Chimei Innolux |
| pantailaren tamaina | 7.0 inch |
| pixel-zenbakia | 800(RGB)×480 (WVGA) 133PPI |
| eremu aktiboa (mm) | 152.4 × 91.44 (H×V) |
| bezela eremua (mm) | 154.4 × 94.34 (H×V) |
| luminantzia | 400 cd/m² (Typ.) |
| ikuspegi angelua | 70/70/60/60 (Typ.)(CR≥10) |
| ikuspegi ona | 12 o'clock |
| kolore-sakonera | 262K/16.7M 74% NTSC |
| masa | 232±23g |
| freskatze tasa | 60Hz |
| seinale mota | CMOS (1 ch, 6/8-bit) , 60 pins FPC |
| tentsio-hornidura | 3.3/3.3/10/19/-6.8V (Typ.)(VCC/VDDG/AVDD/VGH/VGL) |
| gehienez. balorazioak | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| ereduaren izena | DD070NA-02C |
| pantaila mota | LCM , a-Si TFT-LCD |
| antolamendua | RGB Vertical Stripe |
| eskema (mm) | 169.96 × 106.64 × 32.1 (H×V×D) |
| tratamendua | Antiglare, Hard coating (3H) |
| kontraste-erlazioa | 1600 : 1 (Typ.) (TM) |
| erantzuna | 5/11 (Typ.)(Tr/Td) ms |
| lan egiteko modua | TN, Normally White, Transmissive |
| atzeko argia | WLED , 30K hours , No Driver |
| erabiltzen | Automotive Display |
| pantaila taktila | 4-wire Resistive Touch |
| A070PAN01.0 | AUO | 7.0 | 900×1440 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| DD070NA-02A | Innolux | 7.0 | 800×480 |
| ED070NA-01N | Innolux | 7.0 | 1024×600 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| LQ070Y3DG02 | SHARP | 7.0 | 800×480 |
| LTA070B2C0F | TOSHIBA | 7.0 |
