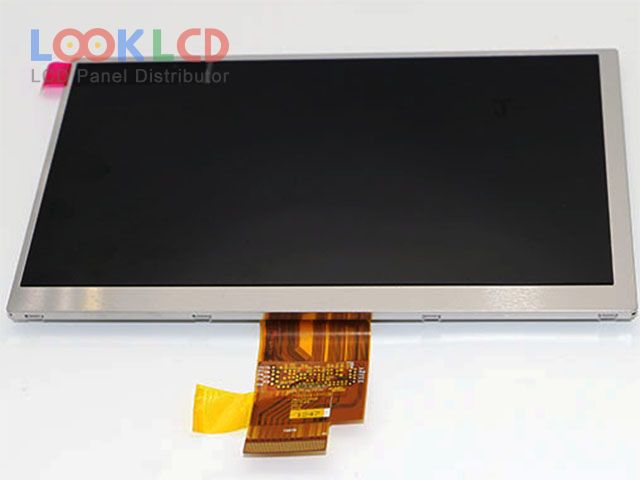

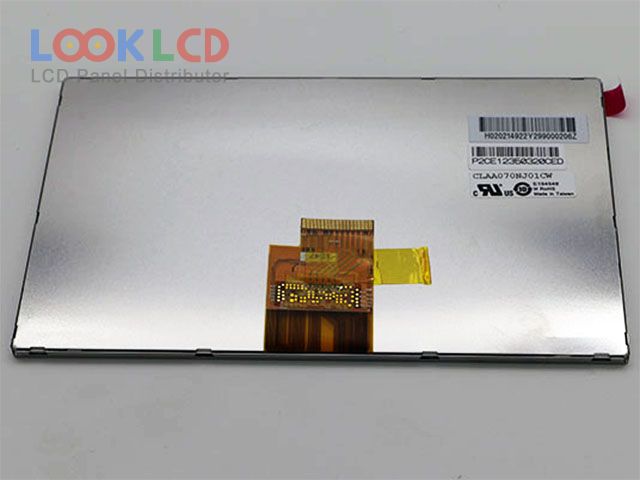

| PartZenbakia | CLAA070NJ01CW |
| Marka | CPT |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 550 |
| CR | 800:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CPT |
| panel eredua | CLAA070NJ01CW |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 154.214×85.92 mm |
| eskema | 164.9×100×3.7 mm |
| azalera | Antiglare |
| distira | 550 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S6PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 40 pins |
| sarrerako tentsioa | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikazio | CNS |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LC0ACW | CPT | 7.0 | 800×480 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AT080TN42 V.1 | Innolux | 8.0 | 800×600 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| LB070WV3-SD01 | LG Display | 7.0 | 800×480 |
| LQ070Y5DA02A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| YX050800480WTIPS | 5.0 | 800×480 |
