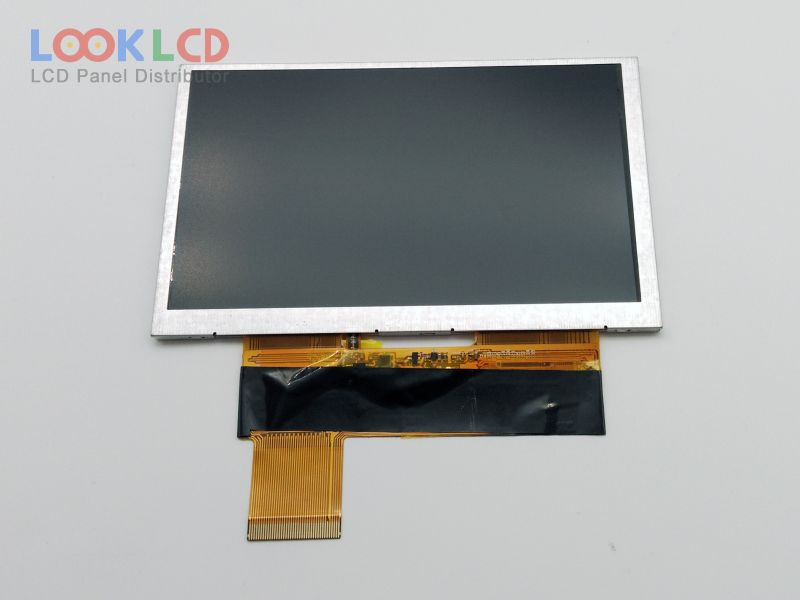

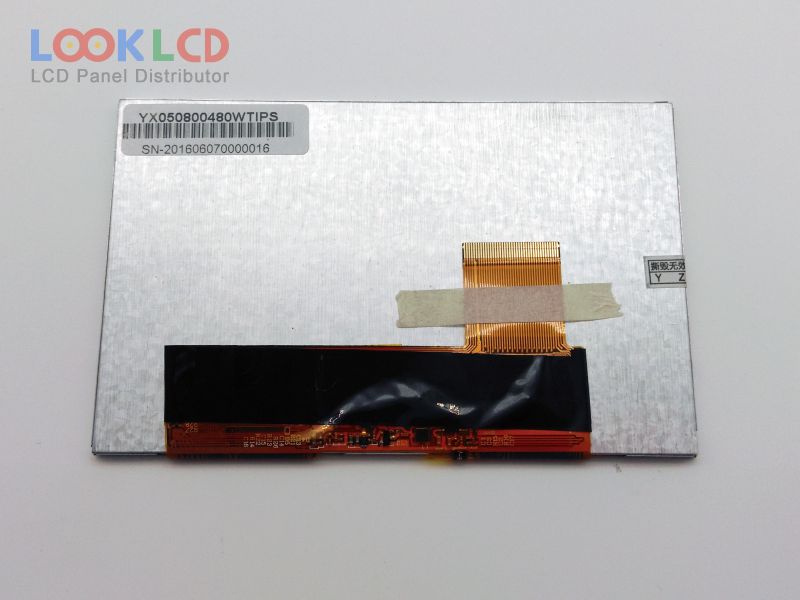

| PartZenbakia | YX050800480WTIPS |
| Marka | |
| Tamaina | 5.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 700:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | |
| panel eredua | YX050800480WTIPS 0 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| eremu aktiboa | 108×64.8 mm |
| eskema | 120.7×75.8 mm |
| azalera | Antiglare |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 10/10 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit) |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | CNS |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| HSD050FMW2-D00 | HannStar | 5.0 | 540×960 |
| HSD050IDW1-A30 | HannStar | 5.0 | 800×480 |
| LT050CA41000 | JDI | 5.0 | 800×480 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| TFD50W52MS3 | TOSHIBA | 5.0 | |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
| TM050QDH06 | Tianma | 5.0 | 640×480 |
| YX050800480WTIPS | 5.0 | 800×480 |
| A070FW03 V6 | AUO | 7.0 | 480×234 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LA080WV2-TD01 | LG Display | 8.0 | 800×480 |
| LB070WQ5-TD01 | LG Display | 7.0 | 480×240 |
| LB070WQ7-TD02 | LG Display | 7.0 | 480×234 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ088H9DR01U | SHARP | 8.8 | 640×240 |
| LTA065B626A | TOSHIBA | 6.5 | 400×234 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
