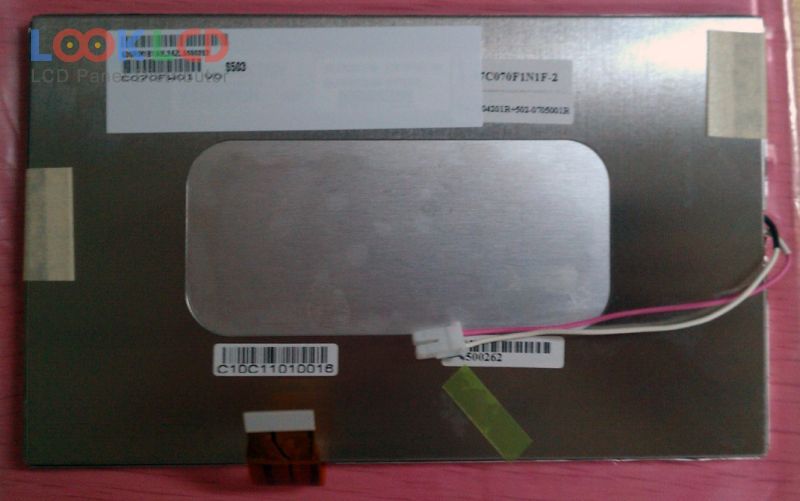

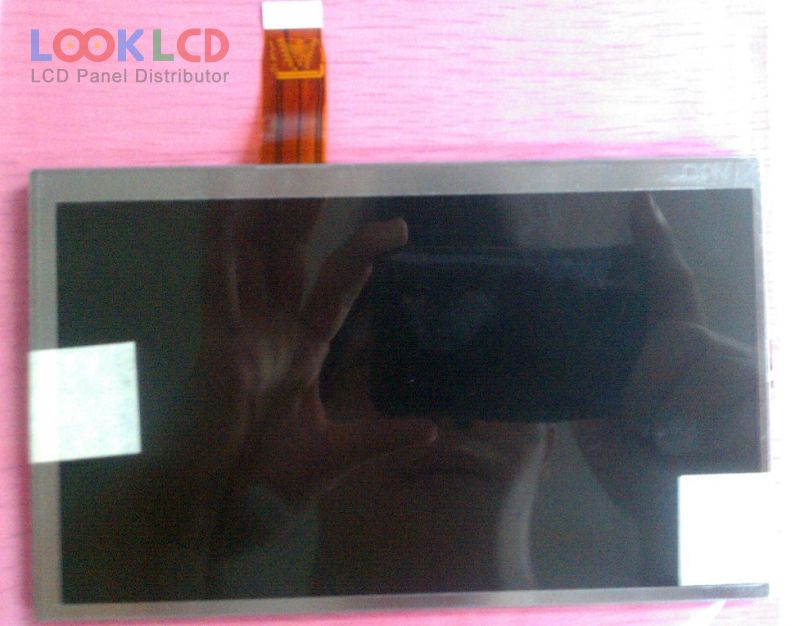

| PartZenbakia | C070FW01 V0 |
| Marka | AUO |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 480×234 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 300:1 |
| Koloreak | |
| Atzeko argia | CCFL |
| Interfazea | Analog |
| panel marka | AUO |
| panel eredua | C070FW01 V0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 480(RGB)×234 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 154.08×86.58 mm |
| eskema | 164.9×100 mm |
| azalera | Antiglare (Haze 25%) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | , CIE193148% |
| erantzun denbora | 12/18 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | TFT Specific Analog RGB, 26 pins |
| sarrerako tentsioa | 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | CNS |
| B070ATN01.0 | AUO | 7.0 | 1024×600 |
| C070FW01 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070FW02 V2 | AUO | 7.0 | 480×234 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| LB070WQ7-TD02 | LG Display | 7.0 | 480×234 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
| C061FW01 V0 | AUO | 6.1 | 480×234 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
| LQ042B5DG02 | SHARP | 4.2 | 400×96 |
| LQ088H9DZ03 | SHARP | 8.8 | 640×240 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| PD050VX6 | E Ink | 5.0 | 640×480 |
| PM061WX1 | E Ink | 6.1 | 800×480 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
