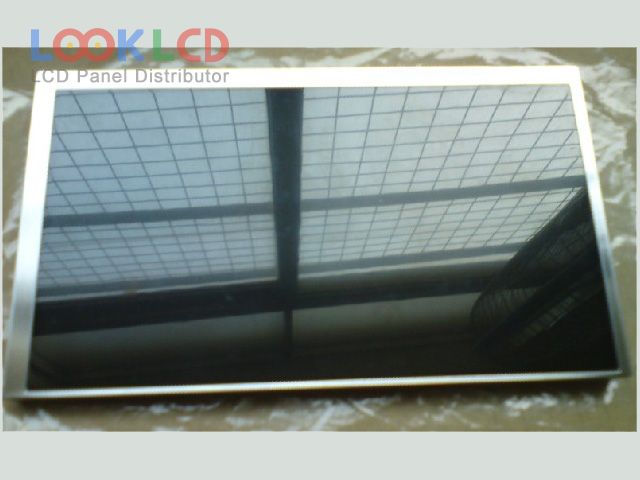

| PartZenbakia | PD050VX6 |
| Marka | E Ink |
| Tamaina | 5.0 |
| Aplikazio | CNS |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 450 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | PVI |

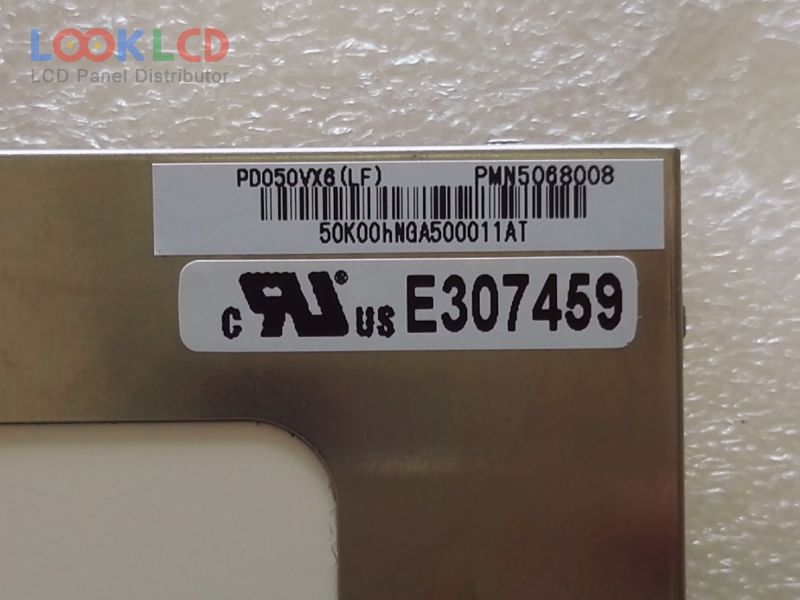

| panel eredua | PD050VX6 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.0 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 101.76×74.88 mm |
| eskema | 119.3×91.4×8.2 mm |
| azalera | Antiglare |
| distira | 450 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 15/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 3S8PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/3.3/7.7/17/-5.5V (Typ.)(VCC/VDD1/VDD2/VCG/VEE) |
| aplikazio | CNS |
