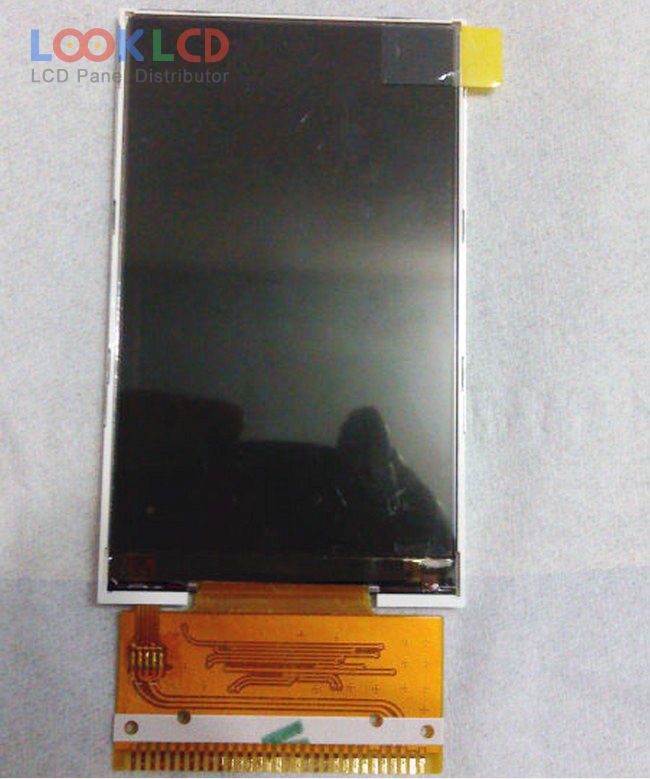

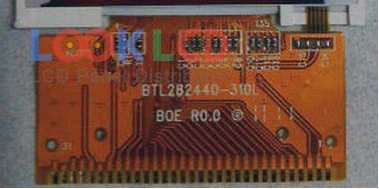

| PartZenbakia | BTL282440-310L |
| Marka | BOE |
| Tamaina | 2.8 |
| Aplikazio | MPH |
| Ebazpena | 240×400 |
| Konposizioa | LCM |
| Distira | 190 |
| CR | 240:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | CPU |
| panel marka | BOE |
| panel eredua | BTL282440-310L |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.8 inch |
| ebazpena | 240(RGB)×400 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 36.72×61.2 mm |
| eskema | 42.5×71.4 mm |
| azalera | Clear |
| distira | 190 cd/m² (Typ.) |
| kontraste-erlazioa | 240:1 (Typ.) |
| bistaratzeko koloreak | 262K |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 55/55/60/30 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1S4PWLEDWithout Driver |
| seinale interfazea | CPU, 31 pins |
| sarrerako tentsioa | 2.8/2.8V (Typ.)(IOVCC/VCC) |
| aplikazio | MPH |
