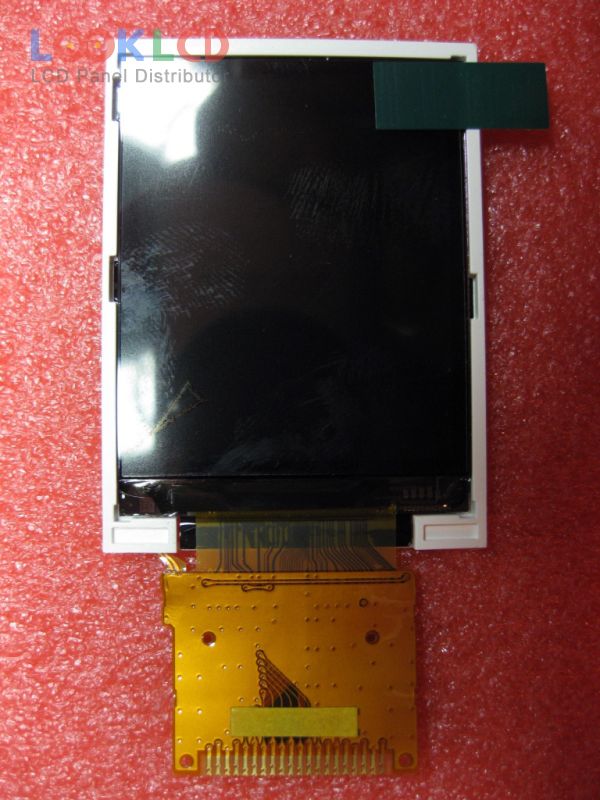

| PartZenbakia | TM022GDH11 |
| Marka | Tianma |
| Tamaina | 2.2 |
| Aplikazio | MPH |
| Ebazpena | 176×220 |
| Konposizioa | LCM |
| Distira | 240 |
| CR | 350:1 |
| Koloreak | 65K |
| Atzeko argia | WLED |
| Interfazea | CPU |
| panel marka | TIANMA |
| panel eredua | TM022GDH11 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.2 inch |
| ebazpena | 176(RGB)×220 , QCIF+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 34.848×43.56 mm |
| eskema | 42.3×57.5 mm |
| azalera | Clear, Hard coating (3H) |
| distira | 240 cd/m² (Typ.) |
| kontraste-erlazioa | 350:1 (Typ.) |
| bistaratzeko koloreak | 65K , CIE193160% |
| erantzun denbora | 25/40 (Typ./Max.)(Tr+Td) |
| ikuspegi angelua | 60/60/60/55 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 4S1PWLEDWithout Driver |

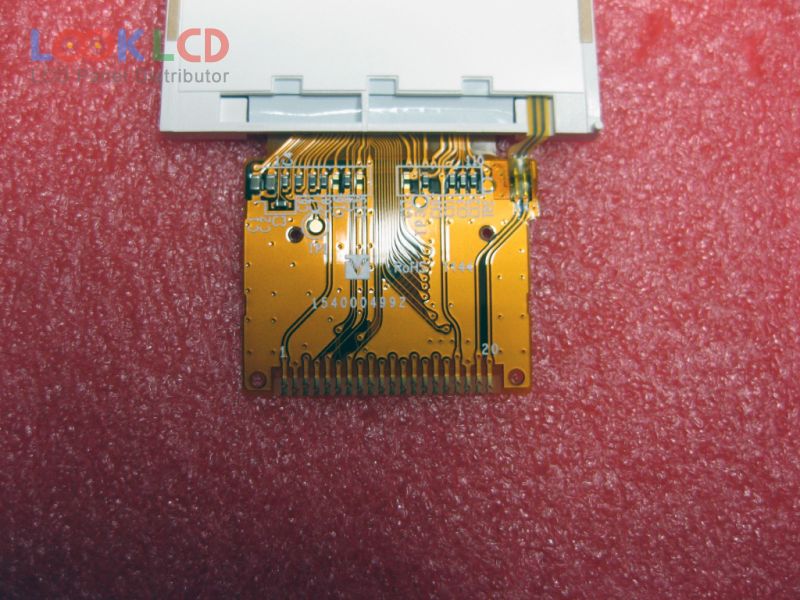

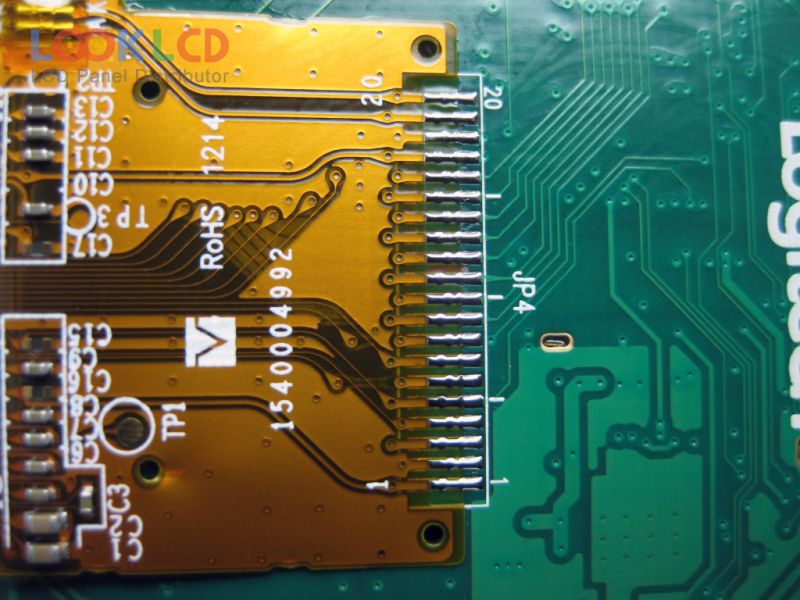

| seinale interfazea | 8-bit 8080 parallel, 20 pins |
| sarrerako tentsioa | 3.3/3.3V (Typ.)(VDD/VCI) |
| aplikazio | MPH |
