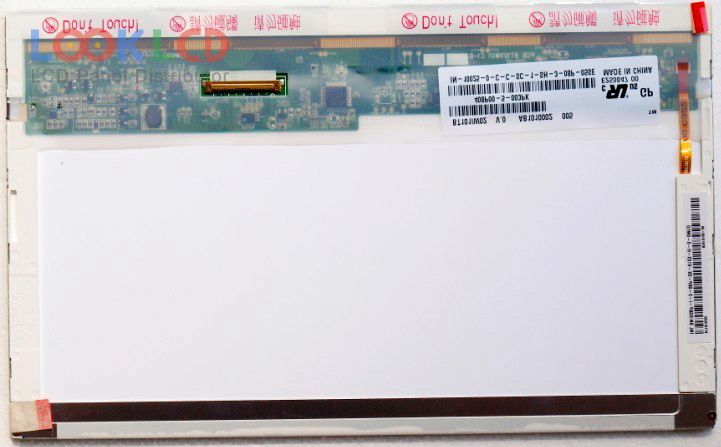

| PartZenbakia | BT101IW02 V.0 |
| Marka | Innolux |
| Tamaina | 10.1 |
| Aplikazio | NOPC |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 180 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | INNOLUX |
| panel eredua | BT101IW02 V.0 13 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.72×125.28 mm |
| eskema | 235×143×5.2 mm |
| forma estiloa | Wedge (PCBA Bent, Depth ≥5.2mm) |
| azalera | Glare (Haze 0%) |
| distira | 180 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 8 (Typ.)(Tr+Td) |
| ikuspegi angelua | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S3PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | NOPC |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW02 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| AT102TN42 | Innolux | 10.2 | 1024×600 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| LP116WH1-TLA1 | LG Display | 11.6 | 1366×768 |
| LP116WH1-TLN1 | LG Display | 11.6 | 1366×768 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N116BGE-L11 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
