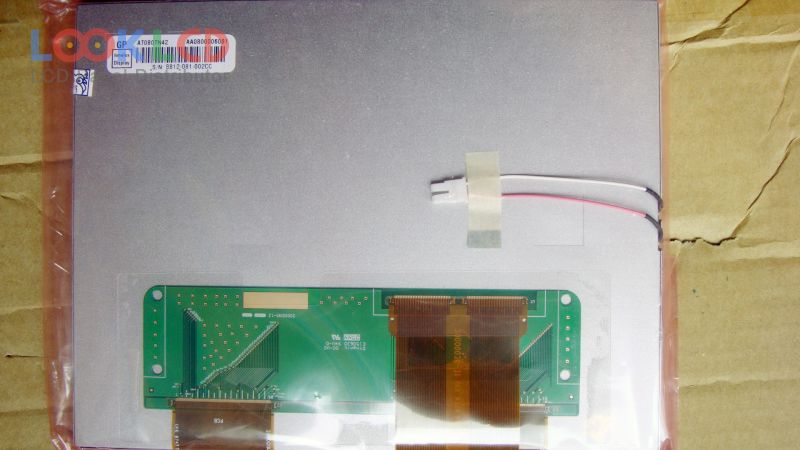

| PartZenbakia | AT080TN42 |
| Marka | Innolux |
| Tamaina | 8.0 |
| Aplikazio | CNS |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | INNOLUX |
| panel eredua | AT080TN42 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.0 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 162×121.5 mm |
| eskema | 183×141 mm |
| azalera | Antiglare |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 3S9PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplikazio | CNS |
