Innolux AT080TN03 V.1 fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

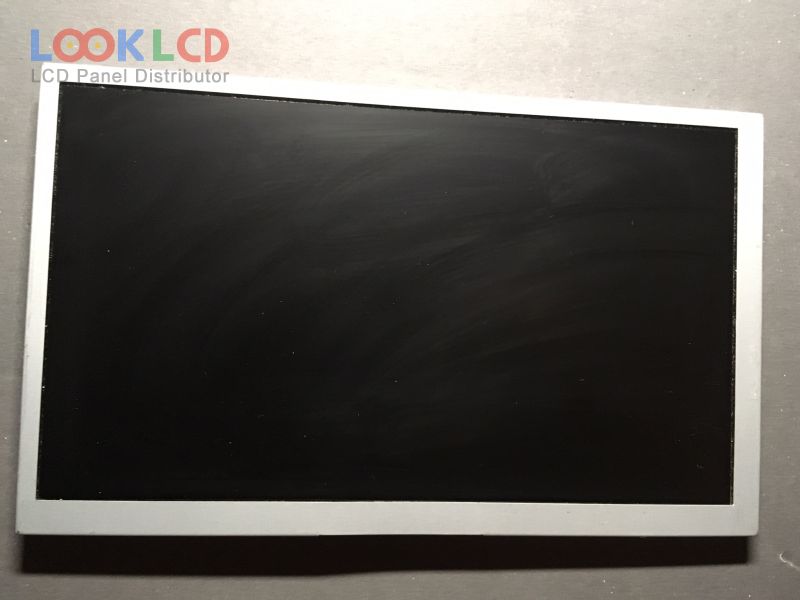

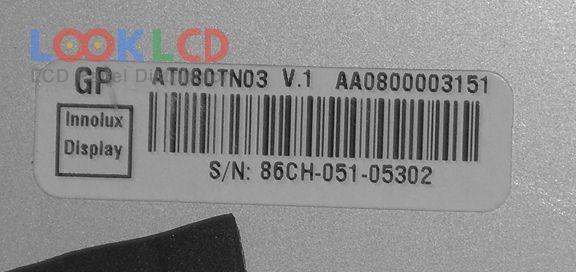

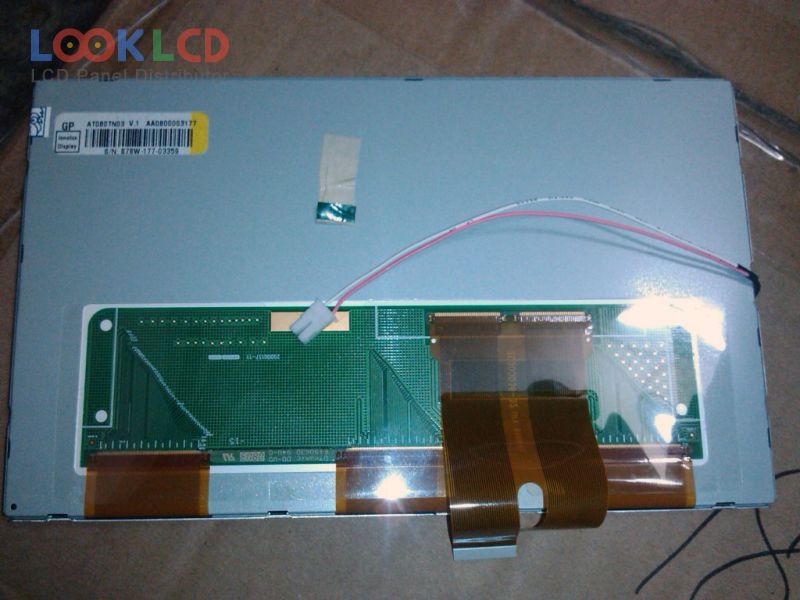

AT080TN03 V.1

AT080TN03 V.1
AT080TN03 V.1
AT080TN03 V.1
AT080TN03 V.1 thumb AT080TN03 V.1 thumb AT080TN03 V.1 thumb
Marka
Innolux
Tamaina
8.0
Aplikazio
DPF
Ebazpena
800×480
Konposizioa
LCM
Distira
250
CR
300:1
Koloreak
262K
Atzeko argia
WLED
Interfazea
TTL
In Stock
1916
Zehaztapenak

PartZenbakia AT080TN03 V.1
MarkaInnolux
Tamaina8.0
AplikazioDPF
Ebazpena800×480
KonposizioaLCM
Distira250
CR300:1
Koloreak262K
Atzeko argiaWLED
InterfazeaTTL
panel markaINNOLUX
panel ereduaAT080TN03 V.1
panel mota a-Si TFT-LCD , LCM
panelaren tamaina8.0 inch
ebazpena800(RGB)×480 , WVGA
bistaratzeko moduaTN, Normally White, Transmissive
eremu aktiboa176.64×99.36 mm
eskema192.8×116.9 mm
azaleraAntiglare
distira250 cd/m² (Typ.)
kontraste-erlazioa300:1 (Typ.)
bistaratzeko koloreak262K (6-bit)
erantzun denbora15/20 (Typ.)(Tr/Td)
ikuspegi angelua65/65/45/65 (Typ.)(CR≥10)(L/R/U/D)
lanpara mota3S9PWLEDWithout Driver
seinale interfazeaParallel RGB (1 ch, 6-bit), 60 pins
sarrerako tentsioa3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
rohs:
aplikazioDPF
Familia Eredua
AT080TN01 Innolux 8.0 800×480
AT080TN03 V.1 Innolux 8.0 800×480
AT080TN03 V.2 Innolux 8.0 800×480
AT080TN03 V.7 Innolux 8.0 800×480
AT080TN42 Innolux 8.0 800×600
AT080TN42 V.1 Innolux 8.0 800×600
AT080TN43 Innolux 8.0 800×600
AT080TN52 Innolux 8.0 800×600
AT080TN52 V.1 Innolux 8.0 800×600
AT080TN64 Innolux 8.0 800×480
