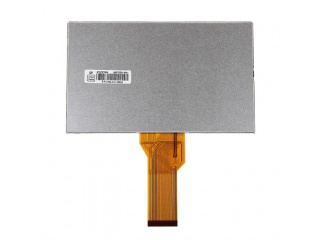

| PartZenbakia | AT070TN04 |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | Automotive Display |
| Ebazpena | 480×234 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 300:1 |
| Koloreak | Full |
| Atzeko argia | CCFL |
| Interfazea | TFT |
| marka | Innolux |
| diagonalaren tamaina | 7.0 inch |
| pixel formatua | 480(RGB)×234 76PPI |
| eremu aktiboa | 154.08(H)×86.58(V) mm |
| bezela eremua | - |
| luminantzia | 500 cd/m² (Typ.) |
| ikusi norabidea | 6 o'clock |
| ikuspegi angelua | 60/60/40/60 (Typ.)(CR≥10) |
| euskarria kolorea | Full color |
| pisua | 160g (Typ.) |
| fotograma-tasa | 60Hz |
| interfaze mota | TFT Specific Analog RGB , 26 pins FPC |
| energia hornidura | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| ingurunea | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| eredua | AT070TN04 |
| mota | a-Si TFT-LCD , LCM |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | 164.9(H)×100(V) ×6(D) mm |
| tratamendua | Antiglare |
| kontraste-erlazioa | 300:1 (Typ.) (TM) |
| erantzun denbora | 10/20 (Typ.)(Tr/Td) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| argi iturria | CCFL [1 pcs] , 10K hours , W/O Driver |
| entzat diseinatua | Automotive Display |
| ukipen-panela | Without |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
