| PartZenbakia | AT070TNA2 |
| Marka | Innolux |
| Tamaina | 7.0 |
| Aplikazio | MP4 |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 700:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CHIMEI INNOLUX |
| panel eredua | AT070TNA2 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 165.75×105.39×3.7 mm |
| azalera | Antiglare |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Dithering) |
| erantzun denbora | 10/10 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S6PWLEDWithout Driver |

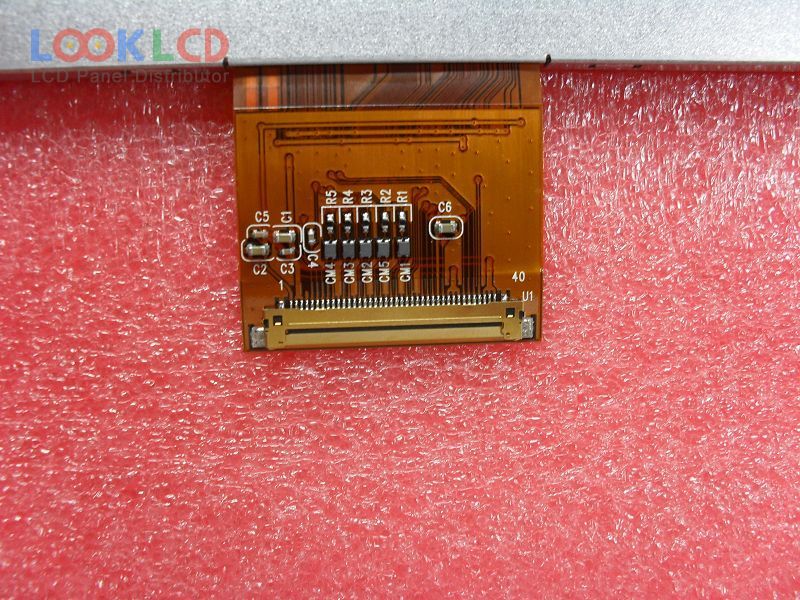

| seinale interfazea | LVDS (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikazio | MP4 |
