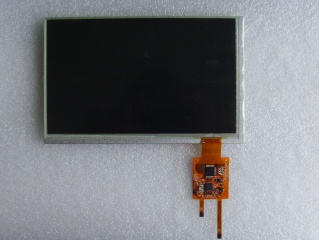

| PartZenbakia | AM-800480RBTMQW-TA1H-A |
| Marka | AMPIRE |
| Tamaina | 7.0 |
| Aplikazio | Industrial |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | 3S10P |
| Interfazea | LVDS |
| panel marka | AMPIRE |
| panel eredua | AM-800480RBTMQW-TA1H-A |
| panelaren tamaina | 7.0" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 800(RGB)×480, WVGA, 133PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 152.4(W)×91.44(H) mm |
| bezela irekidura | 155.3(W)×94.3(H) mm |
| eskema tamaina | 165(W)×104.44(H) ×8.06(D) mm |
| azalera | - |
| distira | 255 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) (TM) |
| ikuspegi angelua | 70/70/70/60 (Typ.)(CR≥10) |
| bistaratzeko modua | TN, Normally White, Transmissive |
| ikuspegirik onena | 6 o'clock |
| erantzun denbora | 5/11 (Typ.)(Tr/Td) |
| bistaratzeko koloreak | 262K |
| lanpara mota | 3S10P WLED , 40K hours , Without Driver |
| maiztasuna | 60Hz |
| pantaila taktila | PCAP |
| panelaren pisua | TBD |
| aplikazio | Industrial |
| seinale interfazea | LVDS (1 ch, 6-bit) , 20 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
