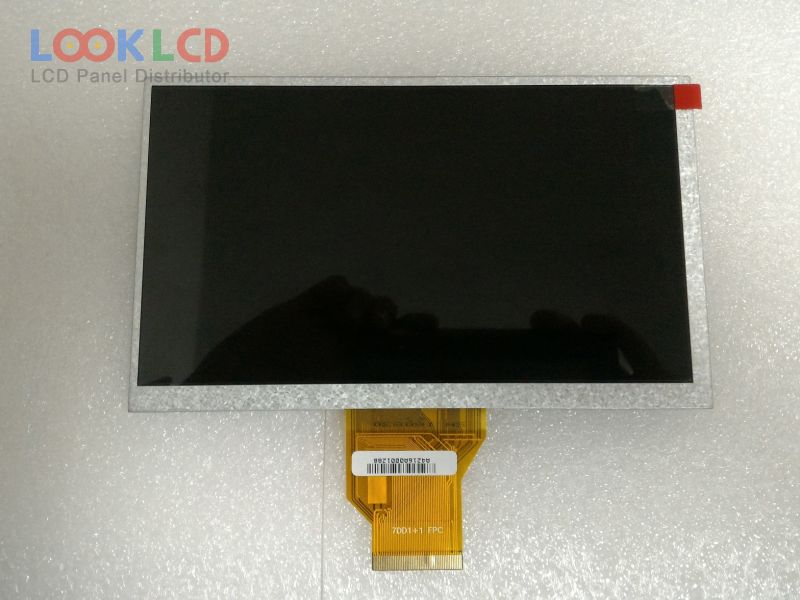

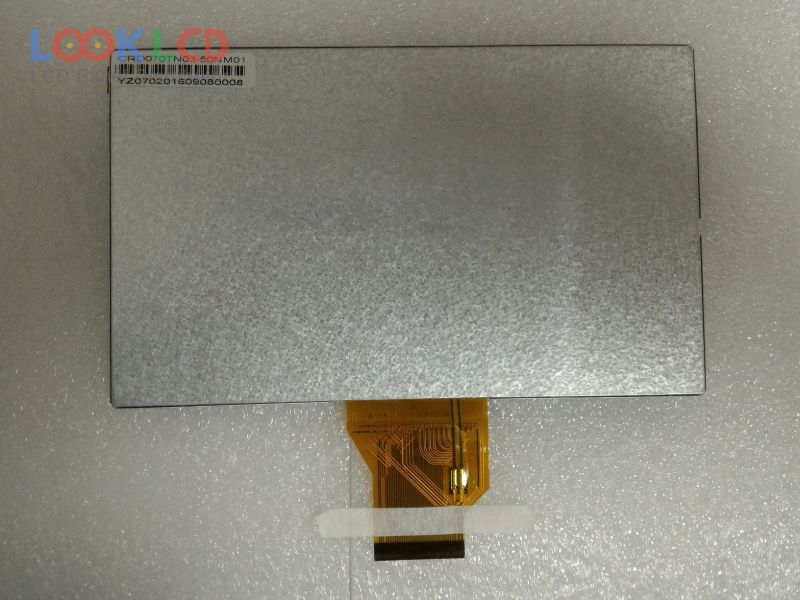

| PartZenbakia | CRD070TN03-50NM01 |
| Marka | Other |
| Tamaina | 7.0 |
| Aplikazio | IA |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | CRD |
| panel eredua | CRD070TN03-50NM01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 154.08×85.92 mm |
| eskema | 164.9×100 mm |
| azalera | Antiglare |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S7PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 50 pins |
| sarrerako tentsioa | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikazio | IA |
