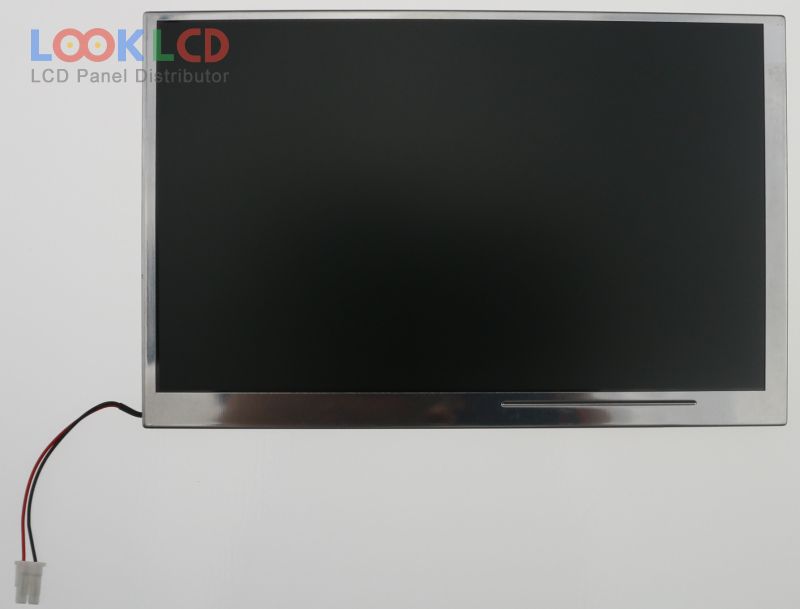

| PartZenbakia | AM-800480RCTMQW-00H |
| Marka | AMPIRE |
| Tamaina | 7.0 |
| Aplikazio | IA |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 1000 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AMPIRE |
| panel eredua | AM-800480RCTMQW-00H |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 165×106×9.06 mm |
| azalera | |
| distira | 1000 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 5/11 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S3PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
