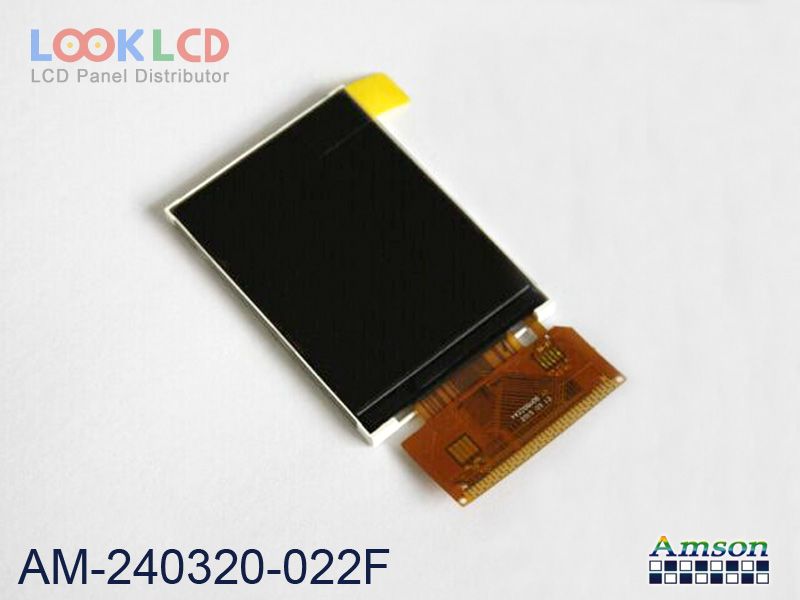

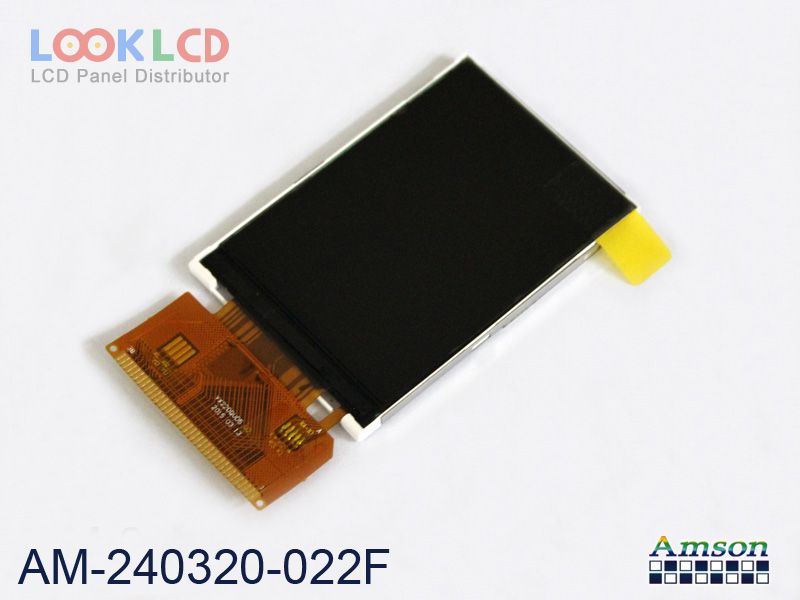

| PartZenbakia | AM-240320-022F |
| Marka | Other |
| Tamaina | 2.2 |
| Aplikazio | HHP |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | |
| CR | |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | CPU |
| panel marka | Amson |
| panel eredua | AM-240320-022F |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.2 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 33.48×44.64 mm |
| eskema | 38.38×59.19×2.6 mm |
| azalera | |
| distira | |
| kontraste-erlazioa | |
| bistaratzeko koloreak | 262K |
| erantzun denbora | |
| ikuspegi angelua | |
| lanpara mota | 4 stringsWLEDWithout Driver |
| seinale interfazea | 8/16-bit 8080 parallel, 38 pins |
| sarrerako tentsioa | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| aplikazio | HHP |
