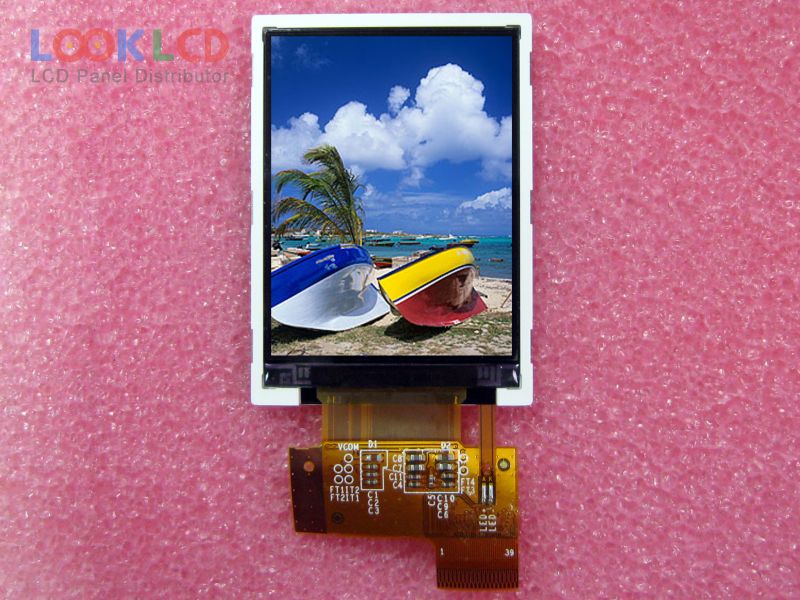

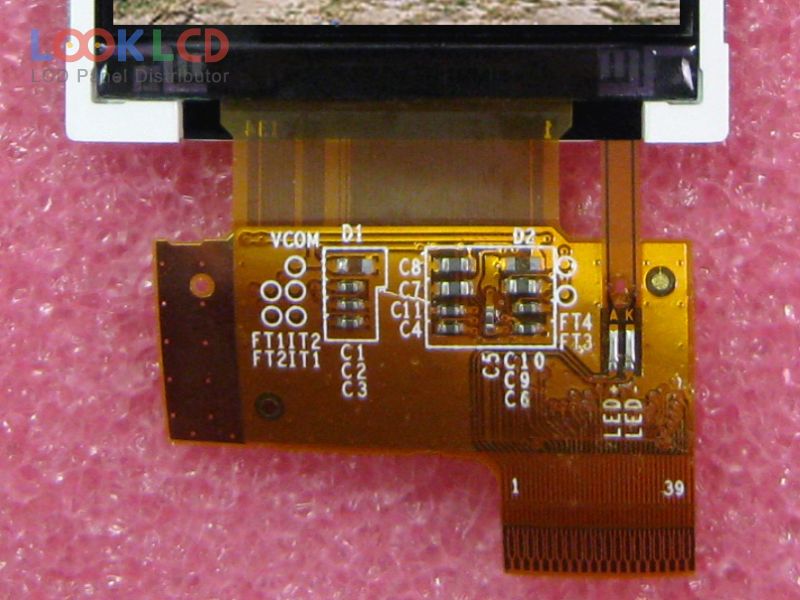

| PartZenbakia | TM022HDHT1-05 |
| Marka | Tianma |
| Tamaina | 2.2 |
| Aplikazio | MPH |
| Ebazpena | 240×320 |
| Konposizioa | LCM |
| Distira | 90 |
| CR | 120:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | TIANMA |
| panel eredua | TM022HDHT1-05 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 2.2 inch |
| ebazpena | 240(RGB)×320 , QVGA |
| bistaratzeko modua | ECB, Normally White, Transflective |
| eremu aktiboa | 33.84×45.12 mm |
| eskema | 40.6×56.6 mm |
| azalera | Clear, Hard coating (3H) |
| distira | 90 cd/m² (Typ.) |
| kontraste-erlazioa | 120:1 (Typ.)(Transmissive) |
| bistaratzeko koloreak | 262K (6-bit), CIE193130% |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 40/45/48/45 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 4S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| sarrerako tentsioa | 2.8V (Typ.)(VDD) |
| aplikazio | MPH |
