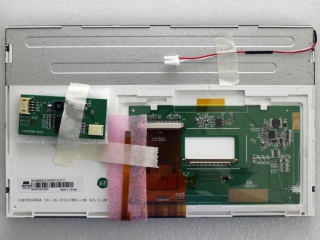

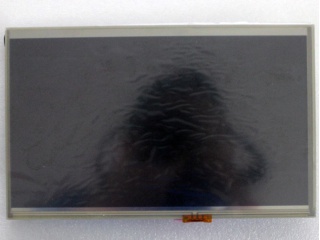

| PartZenbakia | AM-1024600L2HMQW-T01H |
| Marka | AMPIRE |
| Tamaina | 10.1 |
| Aplikazio | Industrial |
| Ebazpena | 1024×600 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| marka | AMPIRE |
| eredua | AM-1024600L2HMQW-T01H |
| diagonalaren tamaina | 10.1 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 1024(RGB)×600 [WSVGA] 117PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 222.72(H)×125.28(V) mm |
| eskema dim. | 235(H)×145.8(V) ×9.8(D) mm |
| bezela eremua | 225.92(H)×128.48(V) mm |
| tratamendua | - |
| luminantzia | 800 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) (TM) |
| ikusi norabidea | - |
| erantzun denbora | 4/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/70/50 (Typ.)(CR≥10) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| euskarria kolorea | 262K 47% NTSC |
| argi iturria | WLED [6S6P] , 50K hours , With LED Driver |
| pisua | TBD |
| entzat diseinatua | Industrial |
| fotograma-tasa | 60Hz |
| ukipen-panela | 4-wire Resistive Touch |
| interfaze mota | LVDS (1 ch, 6-bit) , 30 pins Connector |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -5 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
