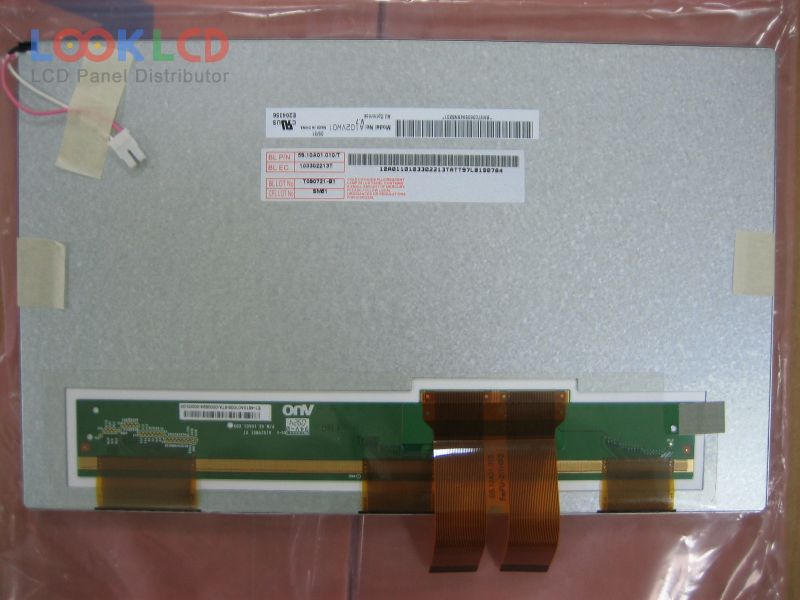

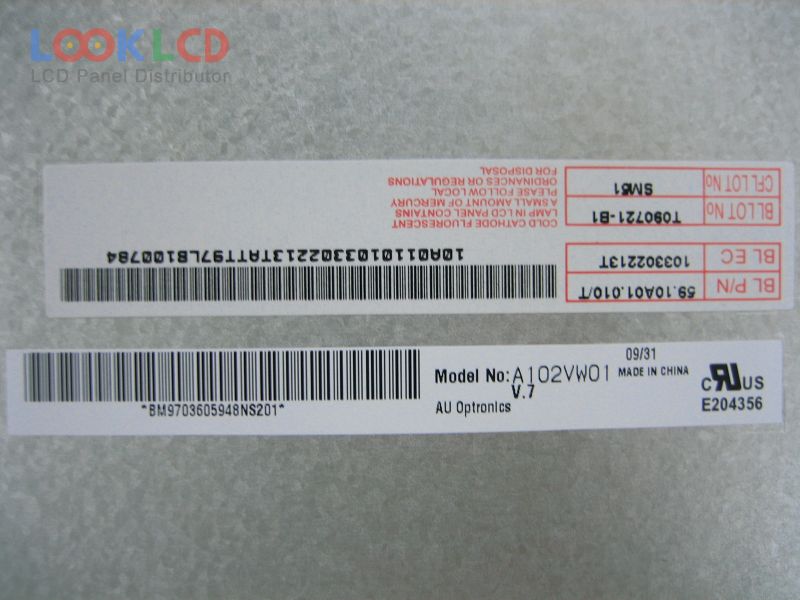

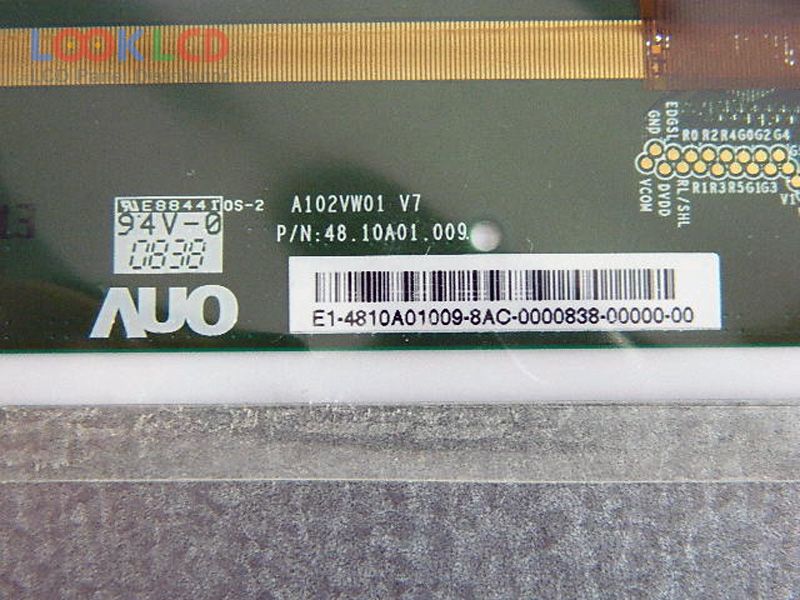

| PartZenbakia | A102VW01 V7 |
| Marka | AUO |
| Tamaina | 10.2 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | AUO |
| panel eredua | A102VW01 V7 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.2 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222×133.2 mm |
| eskema | 235×145.9 mm |
| azalera | Antiglare |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 12/18 (Typ.)(Tr/Td) |
| ikuspegi angelua | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/8.8/15/-7.0/3.6V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| aplikazio | CNS |
| A102VW01 V7 | AUO | 10.2 | 800×480 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA102NA0ACW | CPT | 10.2 | 1024×600 |
| CLAA102NA0DCW | CPT | 10.2 | 1024×600 |
| EZ102AS181 | PDI | 10.2 | 1024×1280 |
| EZ102AT011 | PDI | 10.2 | 1024×1280 |
| PM102WX1 | E Ink | 10.2 | 800×480 |
| TM102WV-A02-03 | SANYO | 10.2 | 800×480 |
| TX26D89VM2BAA | KOE | 10.2 | 800×256 |
| AM-800480-050D | Other | 5.0 | 800×480 |
| C061FW01 V0 | AUO | 6.1 | 480×234 |
| C080VW05 V0 | AUO | 8.0 | 800×480 |
| LA061WQ1-TD05 | LG Display | 6.1 | 480×272 |
| LB070WQ4-TM01 | LG Display | 7.0 | 480×234 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LQ050T5DG01 | SHARP | 5.0 | 400×240 |
| LQ050T5DW02 | SHARP | 5.0 | 400×240 |
| LQ070Y5DR04 | SHARP | 7.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
